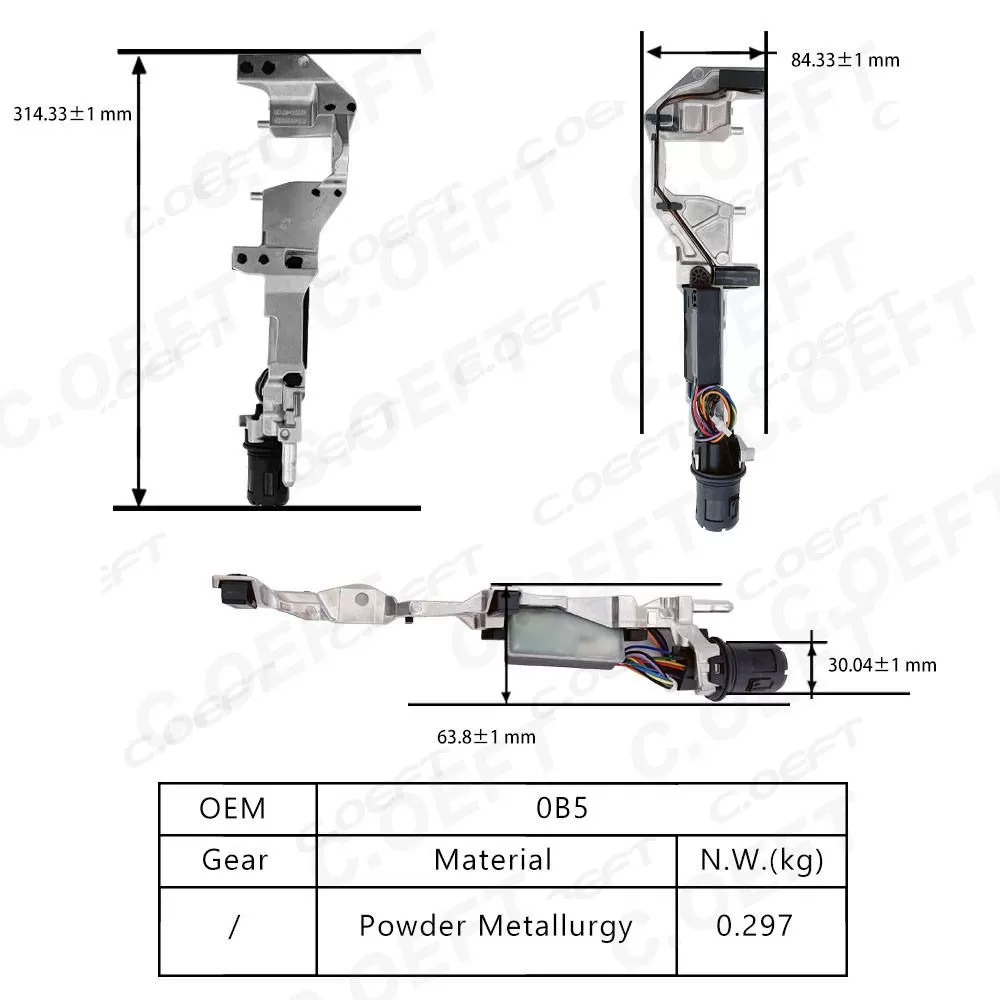

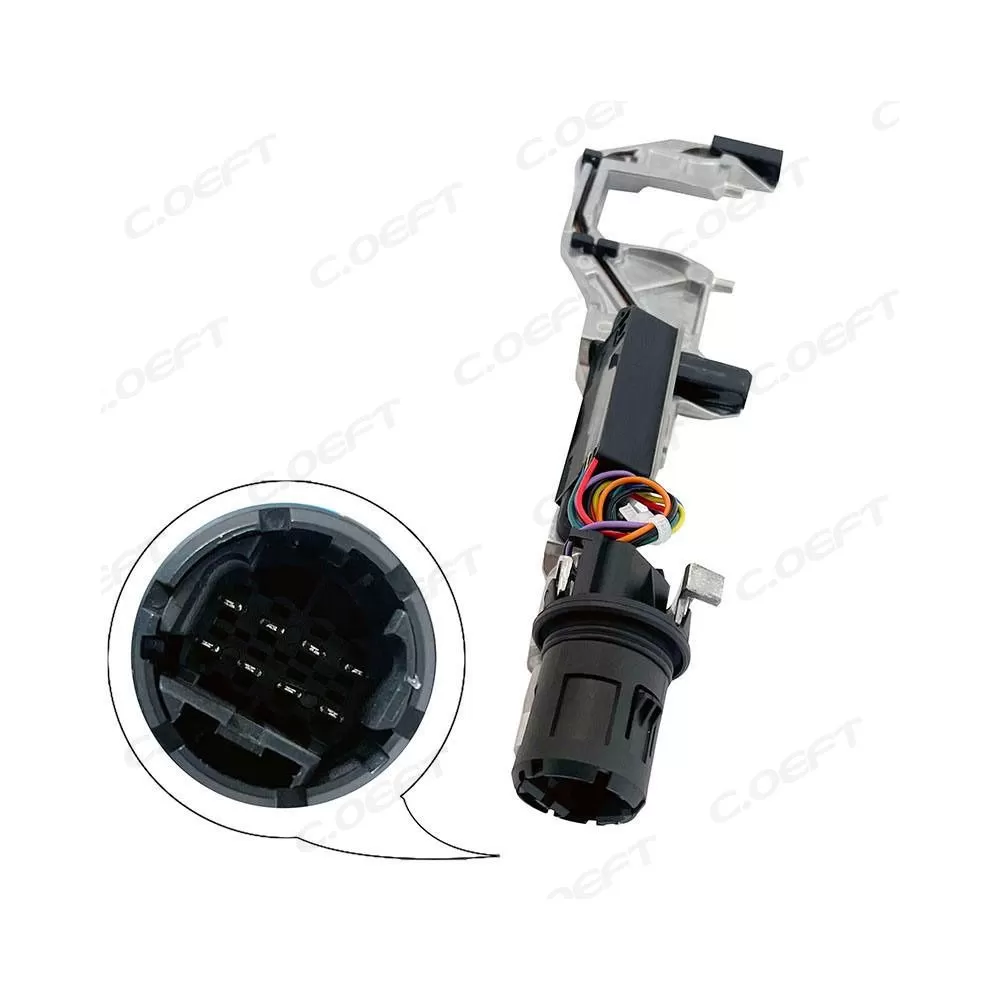

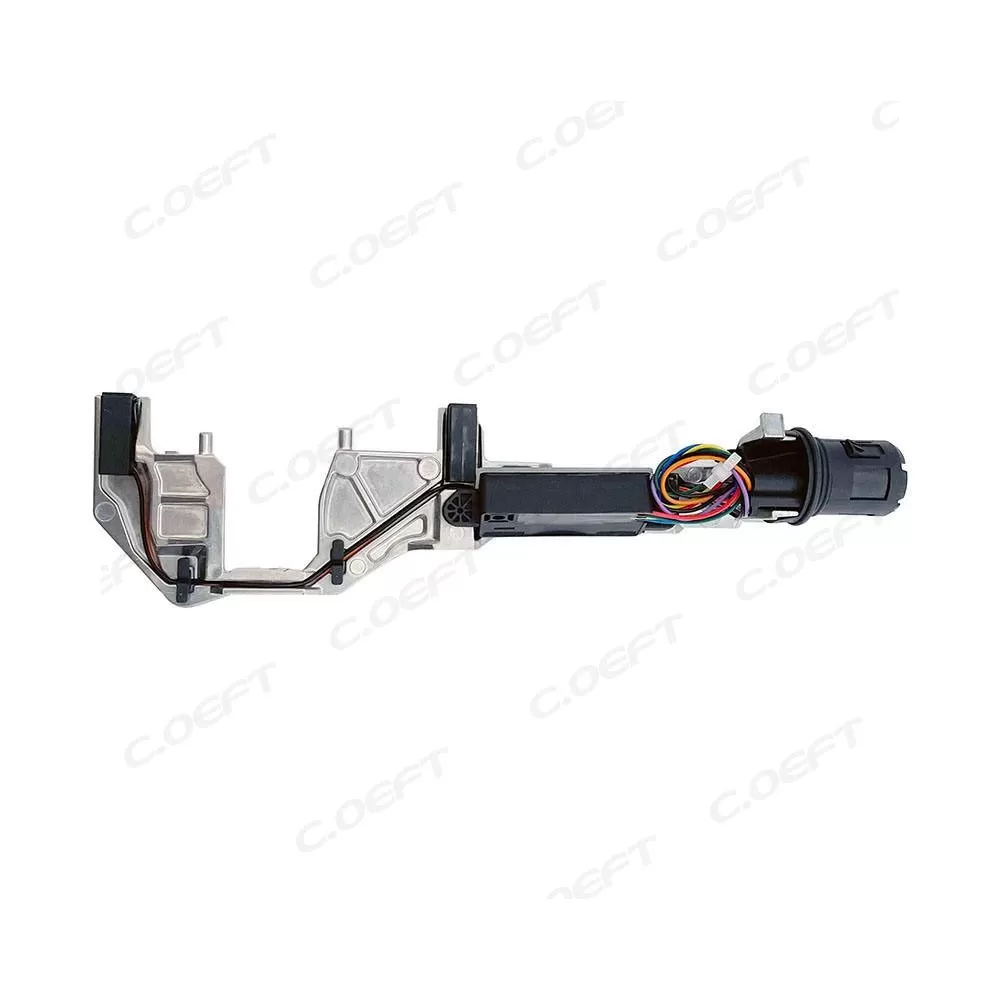

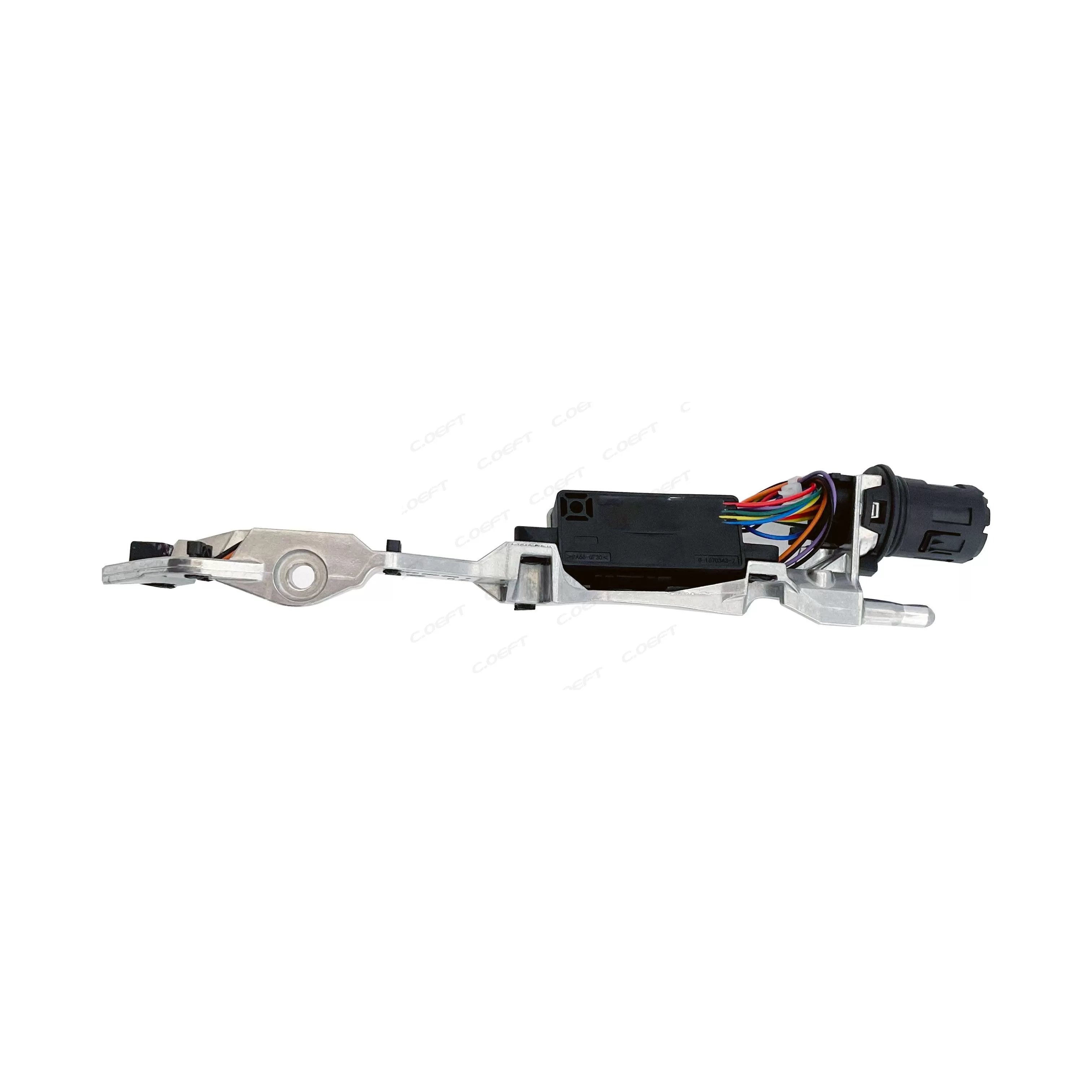

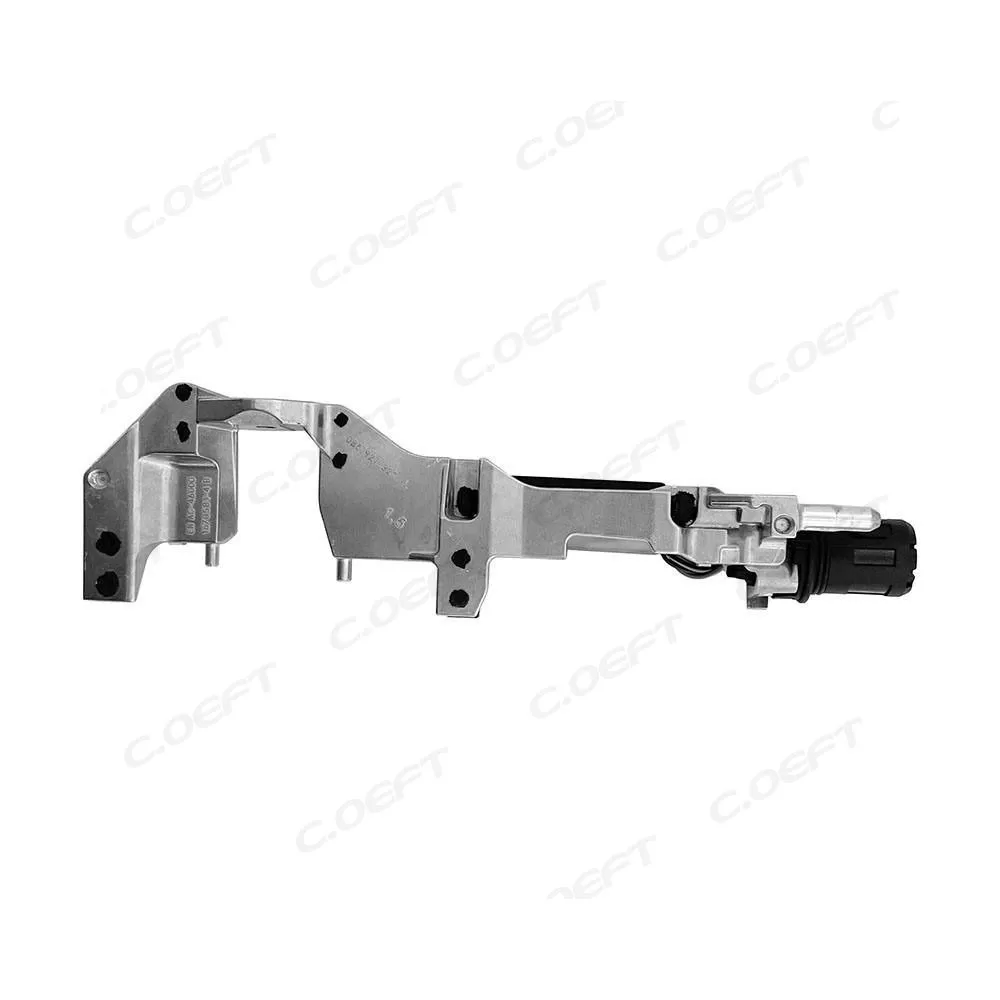

Remanufactured High Quality Transmission Gear Position Switch 0B5 for Volkswagen 0B5

PRODUCT FUNCTIONS APPLICATION ADVANTAGES QUALITY CERTIFICATION

PRODUCT FUNCTIONS

1. Gear Position Detection and Signal Transmission

The primary function of the 0B5 Transmission Gear Position Switch is to accurately detect the position of the transmission gears. When the transmission shifts between different gears, such as park (P), reverse (R), neutral (N), drive (D), or the various forward gears in a multi - speed automatic or dual - clutch transmission, the switch's internal sensors immediately detect this movement. These sensors are highly sensitive and precise, ensuring that even the slightest change in gear position is recognized. Once the position is detected, the switch converts this mechanical position into an electrical signal. This electrical signal is then transmitted to the vehicle's TCU via a dedicated electrical connection. For example, when the transmission shifts from the "D" position to a higher - gear position during acceleration, the 0B5 switch sends a specific electrical signal to the TCU. The TCU, in turn, interprets this signal and activates the appropriate components within the transmission system, such as adjusting the clutch pressure and engaging the correct gear set, to complete the gear - shifting operation smoothly. This signal transmission process is fundamental for the proper functioning of the vehicle's transmission, allowing the TCU to control the operation of the transmission based on the actual gear position.

2. Compatibility with Transmission Control Logic

The 0B5 gear position switch works in close harmony with the vehicle's overall transmission control logic. The electrical signals it sends to the TCU are not only used for basic gear - position indication but also for more complex transmission operations. In modern vehicles with advanced transmission systems, the TCU uses the gear - position signal from the switch, along with other input signals from various vehicle sensors (such as vehicle speed sensors, throttle position sensors, and engine load sensors), to optimize the operation of the transmission. For example, in "sport" mode, the TCU may use the gear - position information from the 0B5 switch to hold gears longer and shift at higher engine speeds for improved performance. In "eco" mode, it may use the same information to shift gears earlier to enhance fuel efficiency. The switch's signals are also used in the control of the torque converter lock - up, which helps improve the efficiency of the transmission by directly connecting the engine to the transmission under certain driving conditions. In addition, the TCU may use the gear - position signal to perform diagnostic functions. If the TCU detects an inconsistent or incorrect gear - position signal from the switch, it can trigger a diagnostic trouble code (DTC) and illuminate the vehicle's check engine light, indicating a potential problem with the gear - shifting system.

3. Indicator Light Control

Another important function of the 0B5 Transmission Gear Position Switch is to control the gear - position indicator lights on the vehicle's dashboard. When the transmission gear position changes, the switch sends signals not only to the TCU but also to the dashboard electronics. These signals are used to illuminate the appropriate gear - position indicator light on the dashboard, such as the "P", "R", "N", "D", or gear - number indicators in a manual - shift mode. This provides the driver with clear visual feedback about the current gear position of the vehicle. The indicator lights are not only a convenience feature but also a safety feature. They ensure that the driver is always aware of the gear the vehicle is in, which is especially important in situations where quick gear changes are required, such as during overtaking or in traffic. In addition, the indicator lights can also be used by other road users, such as pedestrians and other drivers, to anticipate the vehicle's movement, further enhancing overall road safety.

4. Safety - Critical Neutral Safety Function

As mentioned in the safety features section, the 0B5 gear position switch's neutral safety function is of utmost importance. When the ignition key is turned to start the vehicle, the switch's neutral safety mechanism comes into play. It checks the position of the transmission. If the transmission is in the park (P) or neutral (N) position, the switch closes a circuit within the vehicle's starting system. This closed circuit allows electrical power to flow from the vehicle's battery to the starter motor, enabling the engine to be cranked and started. However, if the transmission is in any other gear position, such as drive (D), reverse (R), or a lower - gear position in a manual - shift mode, the switch opens the circuit. This open circuit prevents electrical power from reaching the starter motor, effectively stopping the vehicle from starting while in gear. This neutral safety function helps prevent accidental vehicle movement during the starting process, which could lead to serious accidents and property damage.

5. Diagnostic and Monitoring Capabilities

The 0B5 Transmission Gear Position Switch has built - in diagnostic and monitoring capabilities. It continuously monitors its own operational status, including the integrity of the sensors, the stability of the electrical connections, and the accuracy of the signal transmission. If any anomalies are detected, such as a sensor failure, a short circuit, or an incorrect signal output, the switch can generate a diagnostic trouble code (DTC). This DTC can be retrieved by a diagnostic tool connected to the vehicle's OBD - II (On - Board Diagnostic) port. The diagnostic information provided by the switch helps vehicle owners and mechanics quickly identify and troubleshoot problems with the gear - position sensing system. By detecting and reporting faults in a timely manner, it allows for prompt repairs, preventing potential further damage to the transmission and reducing the risk of unexpected breakdowns on the road.

APPLICATION

ADVANTAGES

1. High Compatibility with Volkswagen - Group Vehicles

The Transmission Gear Position Switch 0B5 is specifically designed to be highly compatible with a wide array of vehicles within the Volkswagen Group. It is an ideal fit for models equipped with the 0B5 7 - speed wet dual - clutch transmission (DSG), which are commonly found in Volkswagen, Audi, and even some Porsche models. For Volkswagen, it suits vehicles like the Passat, Magotan, and Tiguan. In the Audi lineup, it is compatible with the A4L, A6L, A7, Q5, etc. Additionally, for certain Porsche models such as the Macan, it also provides seamless integration. This extensive compatibility is achieved by strictly adhering to the original equipment manufacturer (OEM) standards of the Volkswagen Group. The switch has identical electrical interfaces, mechanical mounting dimensions, and communication protocols as the original switches used in these vehicles. As a result, during installation, mechanics can directly replace the old or faulty switch without the need for any modifications to the vehicle's wiring harness or transmission housing, significantly saving installation time and effort.

2. Exceptional Durability and Reliability

Constructed from top - grade materials, the 0B5 Transmission Gear Position Switch is built to endure the harsh automotive environment. The housing is made of a robust, heat - resistant, and impact - resistant engineering plastic, which can withstand vibrations, shocks, and high temperatures. The high - temperature resistance is particularly crucial as the transmission can generate significant heat during operation, with temperatures in the engine compartment often reaching up to 120°C. Inside the switch, the contact points and sensors are crafted from materials with excellent electrical conductivity and durability, such as silver - plated alloys and high - quality semiconductor materials. These materials ensure a reliable connection and accurate signal transmission over an extended number of switching cycles. During manufacturing, rigorous quality control measures are implemented. The switch has to pass endurance tests that simulate over 200,000 gear - shifting operations, as well as environmental tests including exposure to high humidity levels and extreme temperatures. This durability and reliability mean that vehicle owners can rely on the switch to function properly for a long time, reducing the frequency of replacements and associated maintenance costs.

3. Precise Signal Transmission for Smooth Gear Shifting

Equipped with advanced sensing technology, the 0B5 gear position switch offers highly accurate signal transmission. When the transmission shifts gears, the switch's internal sensors detect the position change of the gear - shifting mechanism with great precision. These sensors then convert the mechanical position into an electrical signal with minimal delay. The electrical signal is transmitted to the vehicle's transmission control unit (TCU) with an extremely high degree of accuracy, typically within an error margin of less than ±0.5%. This precise communication between the switch and the TCU is vital for ensuring smooth and seamless gear - shifting operations. It helps prevent issues such as gear slippage, improper gear engagement, or unexpected gear changes. For example, during normal driving, when the vehicle needs to shift from a lower gear to a higher gear, the switch quickly and accurately sends the corresponding signal to the TCU. The TCU can then adjust the clutch engagement and gear - shifting actuators precisely, providing a smooth and stable gear - shifting experience for the driver.

4. Cost - Effectiveness

Compared to some other high - end or specialized gear position switches in the market, the 0B5 Transmission Gear Position Switch offers excellent cost - effectiveness. Its manufacturing process is optimized to keep production costs down without sacrificing quality. The use of cost - effective yet reliable materials and an efficient production line contribute to its affordability. This makes it an ideal choice for vehicle owners who are looking for a reliable replacement part at a reasonable price. In addition, due to its high durability and long service life, the overall cost of ownership is further reduced as vehicle owners do not need to frequently replace the switch. For automotive repair shops, this cost - effective switch also allows them to offer competitive prices to their customers, enhancing their competitiveness in the market.

5. Enhanced Safety Features

The 0B5 gear position switch incorporates several safety - related features. One of the key safety functions is the neutral safety switch function. When the ignition key is turned to start the vehicle, the switch checks the position of the transmission. If the transmission is in the park (P) or neutral (N) position, the switch closes a circuit, allowing the starter motor to receive power and start the engine. However, if the transmission is in any other gear position, such as drive (D), reverse (R), or a manual - shift gear position, the switch opens the circuit, preventing the starter motor from receiving power. This effectively stops the vehicle from starting while in gear, reducing the risk of sudden and uncontrolled vehicle movement, which could cause accidents and damage to the vehicle or property. Additionally, the switch's accurate signal transmission also contributes to the overall safety of the vehicle's transmission system. By ensuring proper gear engagement and preventing incorrect gear shifts, it helps maintain the stability and controllability of the vehicle during driving.

QUALITY CERTIFICATION
