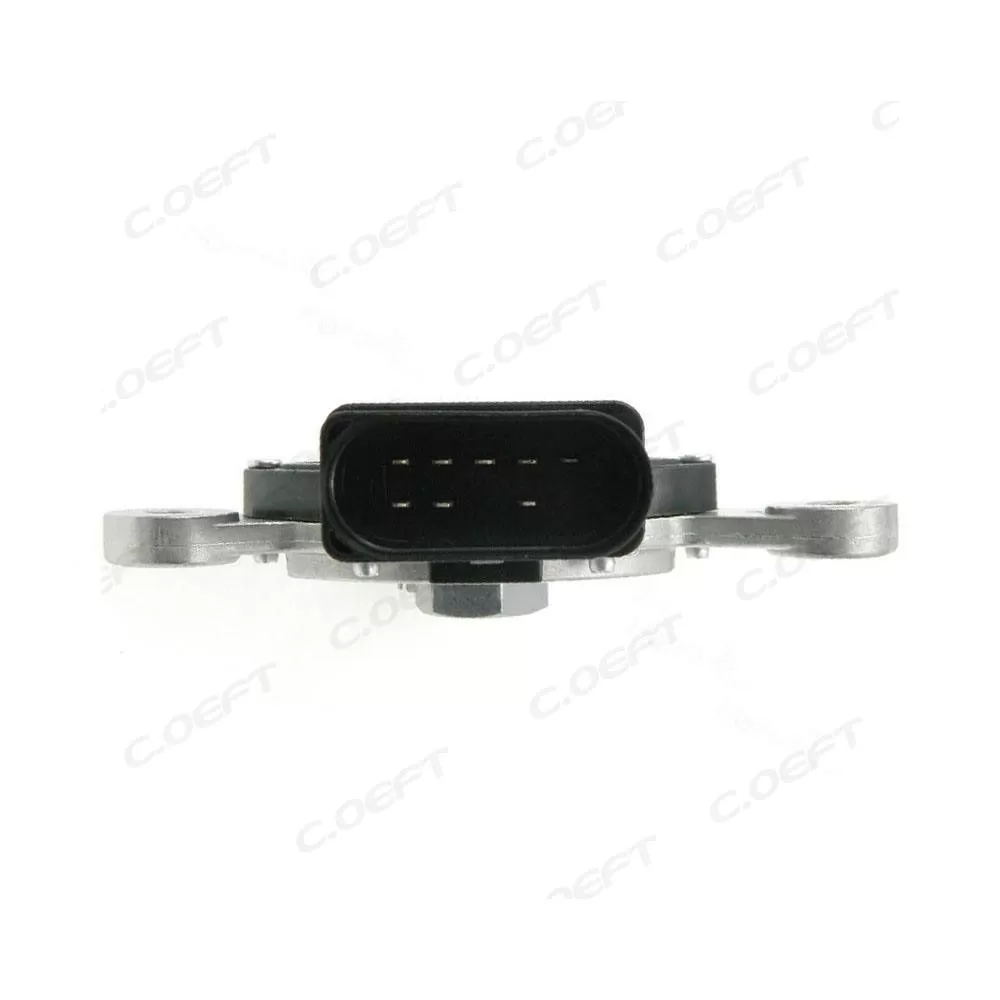

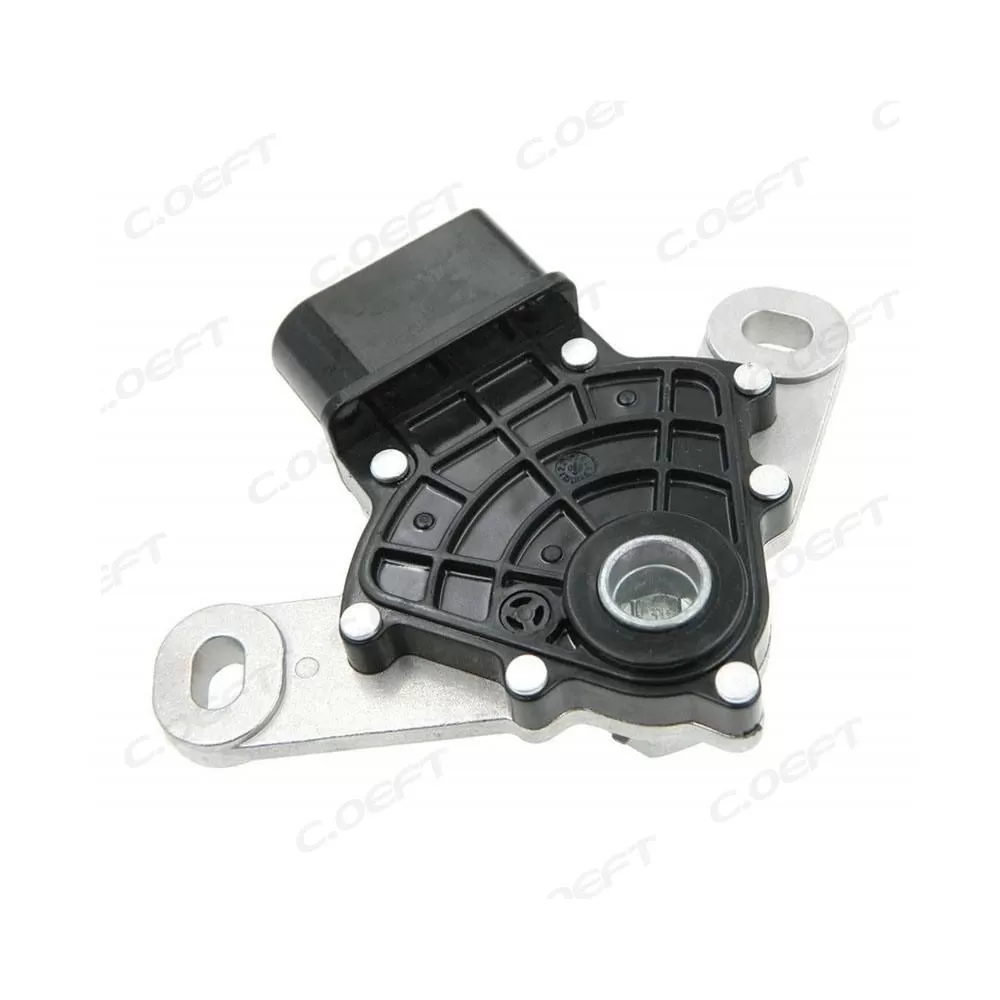

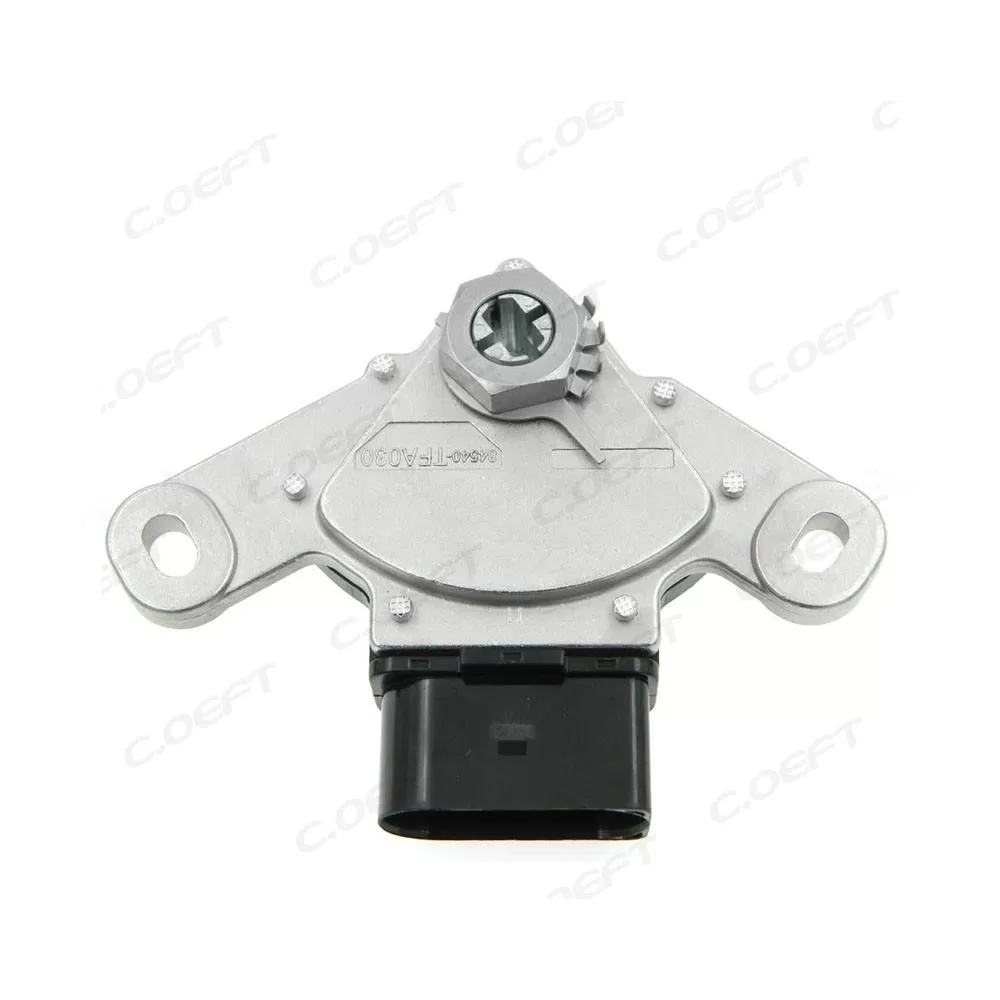

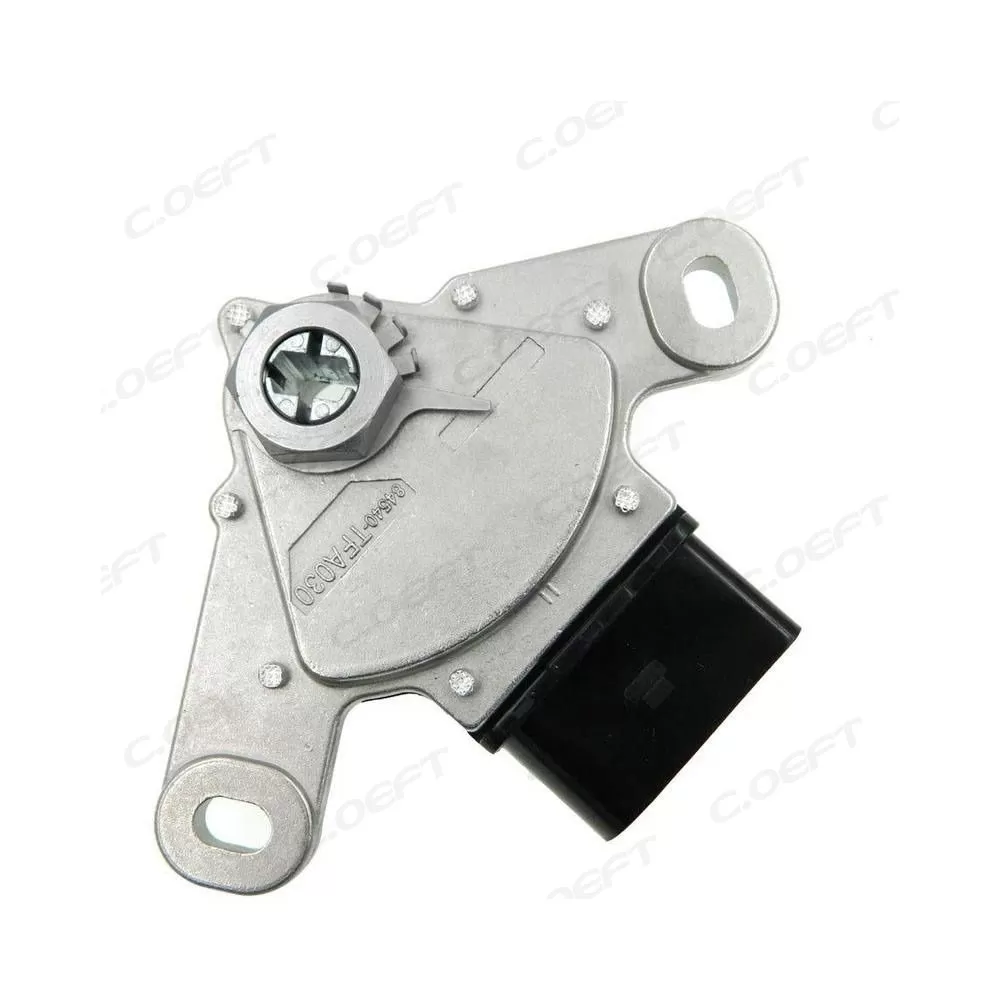

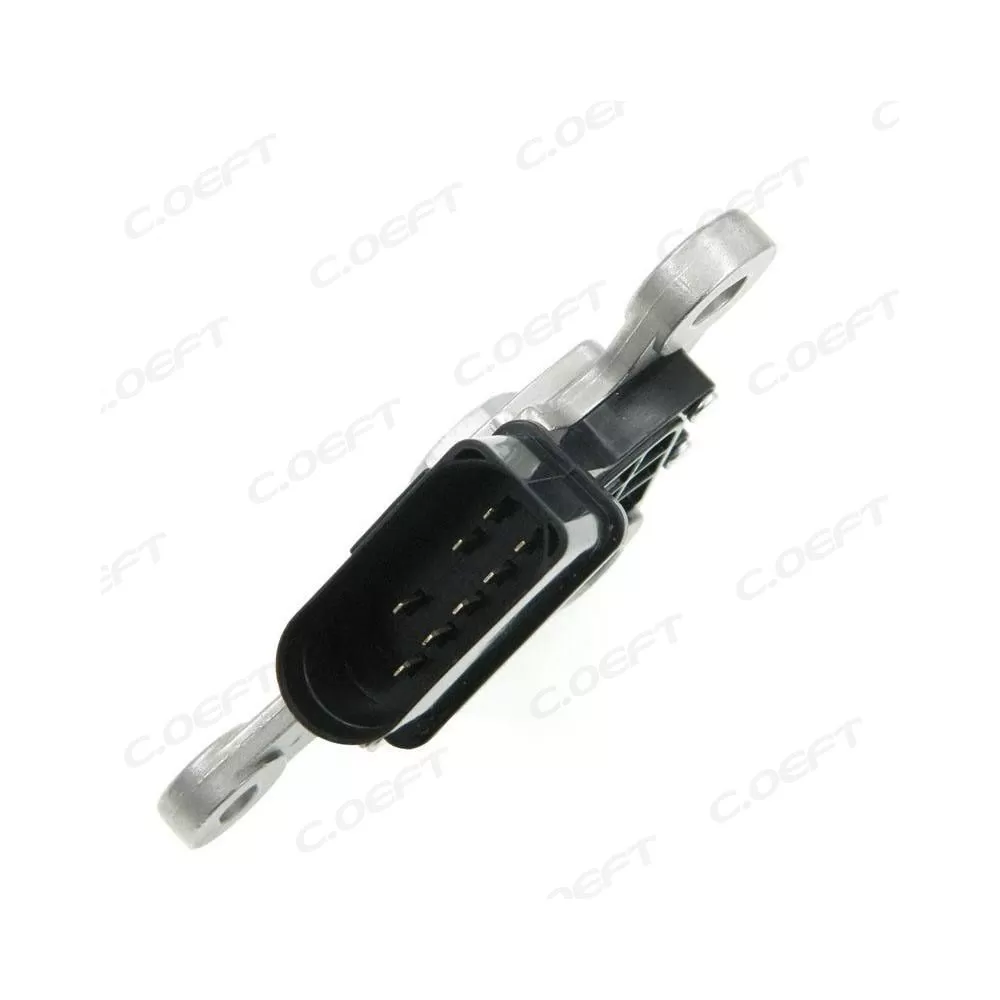

Brand: C.OEFT
OE numbers: 84540-TFA030
Product Name: Gear Shift Switch
Compatible model:
Product status:Remanufactured
Product weight: 0.693KG
Packaging size: 17X17X8.5 cm
Product packaging: Neutral Packaging
Car Series: American
Car Type: for Pontiac
1. Precision Gear Position Detection & Hybrid Signal Conversion
As the core interface for hybrid transmission control, the switch:
Uses dual Hall-effect sensors to detect lever positions (P/R/N/D/B/S) with sub-millimeter precision, ensuring redundant signal validation.
Converts mechanical movement into encrypted CAN-FD signals (compatible with Toyota’s hybrid protocol) and transmits them to the HCU and TCU. For example:
Selecting “B” (Brake) mode sends a signal to the HCU to increase regenerative braking torque, converting kinetic energy into battery power.
Engaging “S” (Sport) mode triggers the TCU to hold gears longer, while the HCU boosts motor output for enhanced acceleration.
2. Synchronization with Toyota Hybrid Powertrain
The switch’s signals enable seamless coordination between Toyota’s HCU, TCU, and ECM:
Transmits gear position data to the HCU, which adjusts the engine-motor power split. In “Eco” mode (integrated with switch signals), the HCU prioritizes electric motor output; in “S” mode, it increases engine participation.
Collaborates with the TCU to optimize shift logic for hybrid efficiency—e.g., shifting to higher gears earlier to reduce engine load, while the HCU compensates with motor torque to maintain performance.
3. Hybrid Dashboard & Energy Monitor Integration
Sends gear position signals to the digital instrument cluster and hybrid energy monitor, displaying “P/R/N/D/B” indicators alongside real-time power flow (engine→wheels, motor→wheels, or regenerative braking).
Triggers the “Hybrid System Warning” light on the cluster if signal anomalies are detected (e.g., switch position conflicts with HCU data), alerting the driver to potential hybrid system issues.
4. Safety Interlock & Shift Lock Operation
Activates the electronic shift lock solenoid to secure the lever in “P” when the vehicle is off or the brake is not pressed. It unlocks only after verifying brake pressure and gear position via dual sensors.
Integrates with the hybrid ignition system to interrupt engine/motor startup if the lever is not in “P” or “N,” preventing accidental movement and protecting the hybrid powertrain from damage.
5. Advanced OBD-II Diagnostics for Hybrid Systems
The switch features built-in predictive diagnostics, continuously monitoring sensor performance and signal stability. It logs OBD-II trouble codes (e.g., P0851 for park/neutral switch circuit malfunction) and transmits real-time data to Toyota’s Techstream diagnostic system. This allows mechanics to quickly identify issues (e.g., sensor degradation) and perform proactive maintenance, minimizing hybrid vehicle downtime.
1. OE-Level Compatibility for Toyota New-Energy & Mid-Size Models
The Gear Shift Switch 84540-TFA030 is exclusively engineered for Toyota’s mid-size vehicles and new-energy models equipped with 6-speed automatic or hybrid transmission systems, including Toyota Camry Hybrid (XV70), RAV4 Hybrid, and Lexus ES 250 (shared Toyota powertrain). It strictly adheres to Toyota’s latest OE standards, matching the original switch’s 14-pin waterproof connector, precision-machined aluminum alloy mounting bracket, and CAN-FD high-speed communication protocol. This eliminates compatibility issues like signal dropout or TCU miscommunication common in generic alternatives, enabling plug-and-play installation without modifying the vehicle’s hybrid powertrain wiring or control software. For authorized repair centers and hybrid vehicle owners, this compatibility ensures seamless integration with Toyota’s advanced energy management system.
2. Hybrid-Ready Durable Construction
Housing: Crafted from carbon-fiber reinforced PPS (Polyphenylene Sulfide) plastic, the switch withstands extreme temperature fluctuations (-40°C to 140°C)—resisting thermal deformation in hybrid vehicle engine compartments (where both engine and motor generate heat) and brittleness in sub-zero environments. It also endures high-frequency vibration (up to 35g) from rough roads, making it reliable for RAV4 Hybrid’s off-road capability.
Internal Components: Adopts gold-plated beryllium copper contacts, which reduce electrical resistance by 50% compared to silver-plated alternatives and maintain conductivity even after 300,000+ shift cycles. The integrated dual Hall-effect sensors (primary + backup) replace mechanical contacts, eliminating wear from friction and ensuring redundant signal transmission—critical for hybrid vehicles’ stable power switching.
Sealing Performance: Boasts an IP6K9K-rated enclosure, certified to resist high-pressure steam cleaning (80-100 bar) and prolonged exposure to road salt, battery electrolytes, and moisture. This protects internal electronics from hybrid vehicle-specific contaminants, ensuring reliability in coastal, snowy, or humid regions.
3. Ultra-Precise Signal Transmission for Hybrid Coordination
Equipped with a 24-bit magnetic position sensor, the 84540-TFA030 detects gear lever movements with 0.1mm accuracy and transmits digital signals to Toyota’s Hybrid Control Unit (HCU) and TCU in ≤8ms. This near-instant response eliminates shift lag, ensuring smooth coordination between engine and electric motor. For example, when shifting from “D” (Drive) to “B” (Brake) mode in regenerative braking, the switch’s precise signal triggers the HCU to adjust motor torque within 50ms, maximizing energy recovery without compromising driving comfort.
4. Hybrid-Specific Safety Mechanisms
Compliant with Toyota’s hybrid safety standards (ISO 26262 ASIL-B and FMVSS 102) and integrated with triple safety features:
Dual Park/Neutral Safety Interlock: Primary and backup sensors cross-verify gear position before enabling engine/motor startup, preventing accidental activation in “D” or “R” to avoid hybrid system damage.
Smart Shift Lock with Brake Pressure Sensing: Works with the brake pedal pressure sensor to unlock the lever only when firm brake pressure (≥150 psi) is applied—reducing rollaway risks for heavy hybrid vehicles on slopes.
Battery Voltage Protection: Built-in surge suppressors shield the switch from voltage fluctuations (12V-48V) in hybrid electrical systems, preventing damage from battery charging/discharging cycles.
All safety mechanisms undergo 20,000+ simulated misuse tests (e.g., forced shifting, voltage surges) to ensure reliability in hybrid operation.
5. Cost-Effective Premium Replacement
Offering OE-level performance at 30-35% lower than genuine Toyota hybrid OEM switches, the 84540-TFA030 delivers exceptional value. Its long Mean Time Between Failures (MTBF ≥12,000 hours) minimizes replacement frequency, lowering maintenance costs for hybrid vehicle owners. The modular sensor design allows targeted repairs (instead of full switch replacement), further reducing service expenses.
6. Ergonomic Hybrid-Centric Design
The switch’s lever features a leather-wrapped grip with contrast stitching, matching Toyota’s mid-to-high-end interior aesthetics. The detent mechanism provides customizable tactile feedback (1.8-2.2N resistance) via adjustable springs, catering to different driving preferences. Its low-profile design fits seamlessly into hybrid vehicles’ compact center consoles (optimized for battery placement), preserving interior space while ensuring easy operation.
