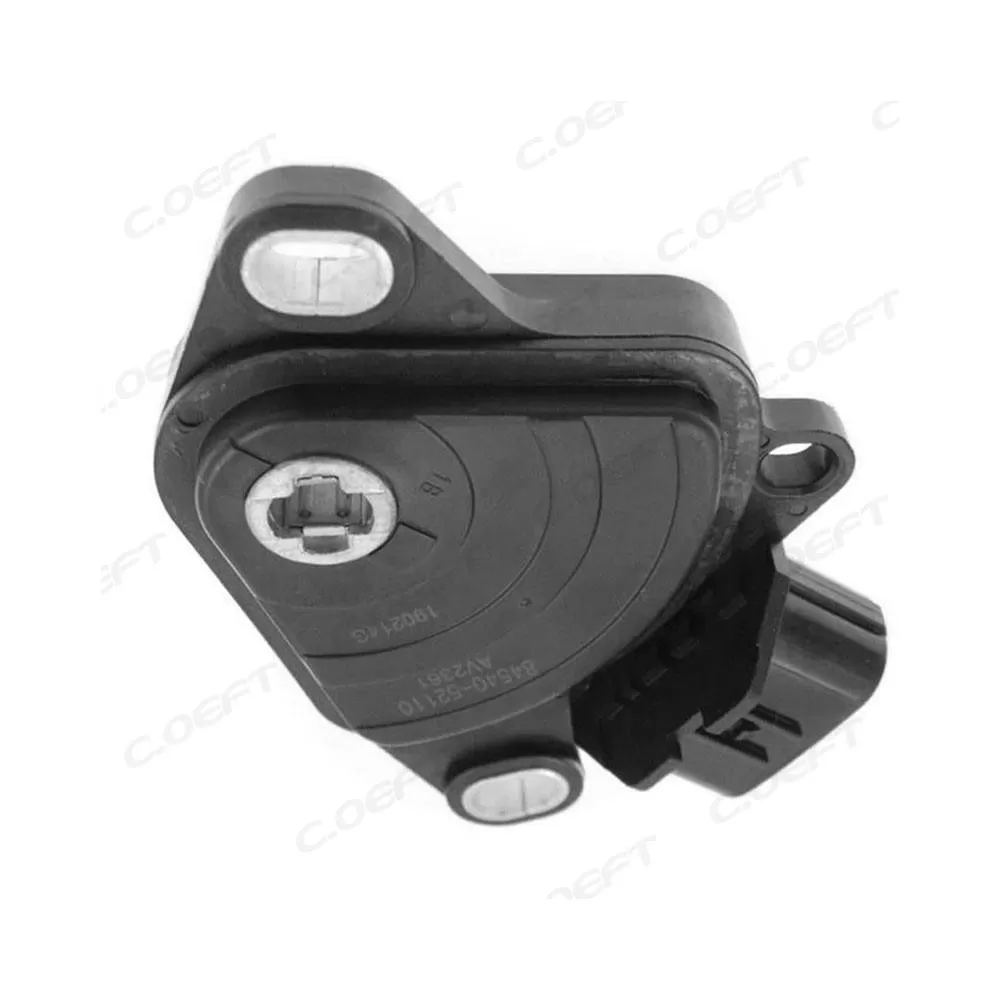

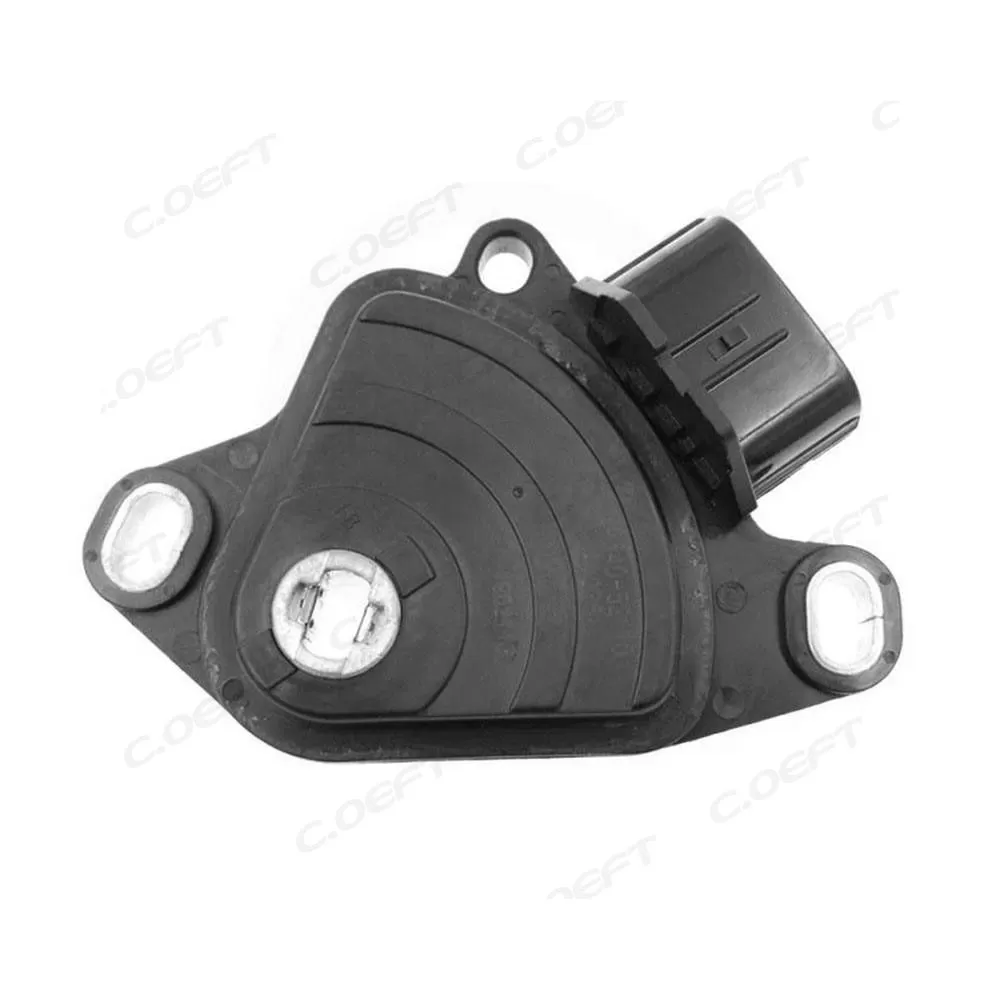

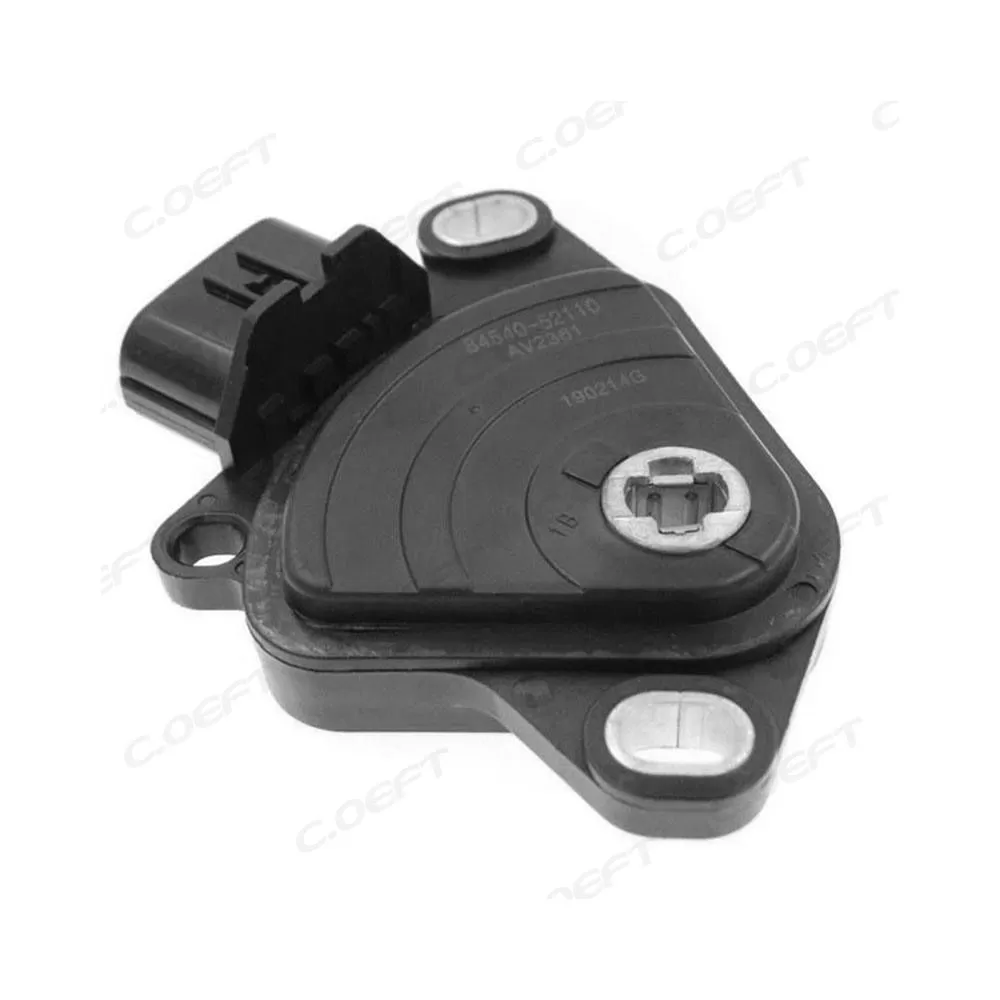

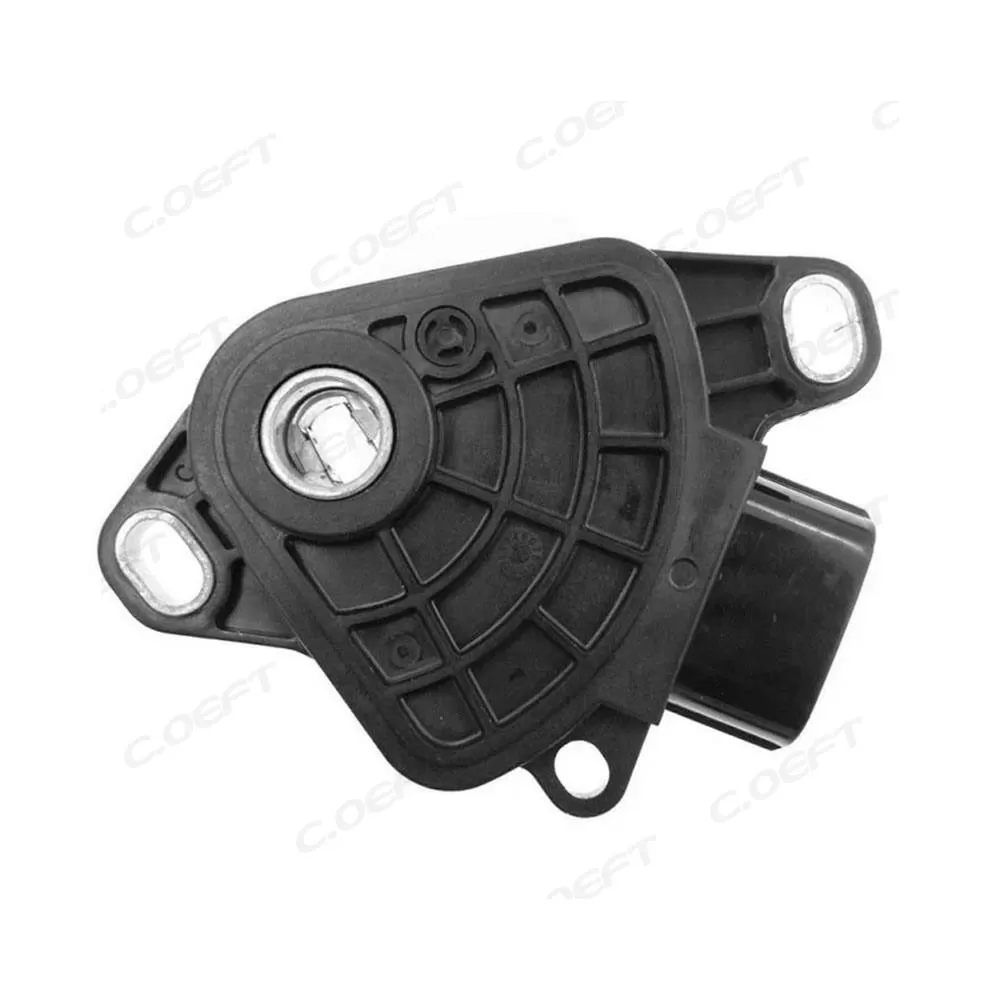

High Quality Gear Shift Switch Shift Switch 84540-52110 for Toyota

PRODUCT FUNCTIONS APPLICATION ADVANTAGES QUALITY CERTIFICATION

PRODUCT FUNCTIONS

1. Gear Position Detection and Signal Transmission

Precise Position Sensing: The 84540 - 52110 uses a highly sensitive Hall - effect sensor to detect the position of the gear lever accurately. Whether the lever is in positions such as "P" (Park), "R" (Reverse), "N" (Neutral), "D" (Drive), "S" (Sport), or "L" (Low), the sensor can detect the position with sub - millimeter precision. This ensures that the driver's intended gear selection is accurately recognized.

Signal Conversion and Transmission: Once the gear position is detected, the switch converts the mechanical position of the lever into digital signals that are compatible with Toyota's Controller Area Network (CAN) communication protocol. These signals are then transmitted to the vehicle's transmission control unit (TCU) in a rapid and reliable manner. For example, when the driver selects "D" (Drive), the switch sends a specific digital code to the TCU, which then activates the appropriate gears in the transmission to enable forward driving.

2. Coordination with Vehicle Powertrain Systems

Interaction with the TCU: The signals from the gear shift switch are crucial for the TCU to control the operation of the transmission. The TCU uses the gear position information to determine when to shift gears, how to adjust the shift timing, and what torque to apply. In "S" (Sport) mode, for instance, the TCU may hold gears for longer periods to provide more power during acceleration, based on the signal received from the switch.

Communication with the Engine Control Module (ECM): The switch also indirectly affects the engine's performance through its communication with the TCU. The TCU relays the gear position information to the ECM, which then adjusts the engine's fuel injection, ignition timing, and throttle response accordingly. When the vehicle is in "L" (Low) mode, the ECM may increase the engine's torque output to provide better pulling power for tasks such as towing or climbing steep hills.

3. Dashboard Indicator and Warning Activation

Gear Position Indication: The switch sends signals to the vehicle's instrument cluster to illuminate the corresponding gear position indicators. When the gear lever is in "R" (Reverse), the "R" indicator on the dashboard lights up, providing clear visual feedback to the driver about the current gear selection. This helps the driver to be aware of the vehicle's operating state at all times.

Warning Signal Generation: In case of any abnormal conditions, such as a malfunction in the switch or a discrepancy between the detected gear position and the expected position, the switch can trigger warning signals. These warnings may include a "Transmission Malfunction" light on the dashboard, alerting the driver to a potential issue with the transmission system. The switch continuously monitors its own performance and the integrity of the signal transmission, and if any problems are detected, it notifies the driver through the warning system.

4. Safety - Related Functions

Park/Neutral Start Interlock: As mentioned earlier, the switch plays a vital role in the park/neutral start interlock system. It ensures that the engine can only be started when the gear lever is in the "P" or "N" position. This function is implemented by sending a signal to the vehicle's ignition system. If the gear lever is in any other position, the ignition system is inhibited from starting the engine, preventing accidental vehicle movement.

Shift Lock Activation: The shift lock function, which is activated in coordination with the brake pedal switch, is also controlled by the gear shift switch. When the vehicle is parked and the gear lever is in "P" position, the switch activates the shift lock mechanism, which physically locks the gear lever in place. When the driver depresses the brake pedal, the switch receives a signal from the brake pedal switch and releases the shift lock, allowing the gear lever to be moved to other positions.

5. Diagnostic and Self - Monitoring Capabilities

Built - in Self - Diagnosis: The 84540 - 52110 is equipped with built - in self - diagnostic capabilities. It continuously monitors the performance of its internal components, such as the Hall - effect sensor and the electrical contacts. If it detects any anomalies, such as a sensor failure, a short - circuit in the electrical circuit, or a problem with the signal transmission, it can log diagnostic trouble codes (DTCs).

OBD - II Compatibility: The diagnostic trouble codes generated by the switch are compliant with the On - Board Diagnostics II (OBD - II) standard. This means that mechanics can use standard OBD - II diagnostic tools to retrieve these codes from the vehicle's diagnostic system. By analyzing the DTCs, mechanics can quickly identify the root cause of any issues with the gear shift switch and perform the necessary repairs, minimizing vehicle downtime.

APPLICATION

ADVANTAGES

1. Precise Compatibility for Toyota Vehicle Line - Ups

The Gear Shift Switch 84540 - 52110 is meticulously engineered to be fully compatible with specific Toyota vehicle models equipped with 6 - speed automatic transmissions. This includes popular models like the Toyota Camry (certain generations), RAV4, and Highlander. It adheres strictly to Toyota's original equipment (OE) standards, ensuring that the electrical pin configuration, mechanical mounting dimensions, and communication protocols match the original switch perfectly. This compatibility not only simplifies the installation process for mechanics, allowing for a straightforward plug - and - play operation without the need for any vehicle wiring or control module modifications but also guarantees seamless integration with Toyota's complex powertrain and vehicle control systems. As a result, vehicle owners can be confident in the switch's performance and reliability, as it functions just like the original equipment.

2. Exceptionally Durable Construction

①.Robust Housing:

Constructed from high - quality glass - fiber reinforced nylon, the switch housing can endure extreme temperature fluctuations, ranging from - 40°C in cold winter conditions to 125°C in the heat of the engine compartment. This material also provides excellent resistance to impact and vibration, which is crucial for vehicles that may encounter rough roads or off - road terrains. The housing's design is optimized to prevent any potential deformation or cracking, ensuring long - term structural integrity.

②.Reliable Internal Components:

Inside the switch, silver - plated copper contacts are used to minimize electrical resistance. This not only improves the efficiency of signal transmission but also extends the lifespan of the contacts, as they are less prone to oxidation and wear. The contacts can withstand over 200,000 shift cycles, ensuring reliable operation over an extended period. Additionally, the use of a high - precision Hall - effect sensor, which replaces traditional mechanical contacts, further enhances the switch's durability. The Hall - effect sensor is immune to mechanical wear and tear, providing consistent and accurate performance throughout its service life.

③.Superior Sealing:

The switch features an IP67 - rated sealing system, which effectively protects it from dust, water, and other environmental contaminants. This means that it can be temporarily submerged in water up to 1 meter deep for 30 minutes without any damage. The sealing system also guards against the ingress of road salt, engine oil, and moisture, making the switch suitable for use in various driving conditions, including coastal areas, snowy regions, and heavy - rain environments.

3. High - Precision Signal Transmission

Equipped with a 16 - bit magnetic position sensor, the 84540 - 52110 can detect the position of the gear lever with an astonishing accuracy of 0.2mm. This high - resolution sensing capability allows for extremely precise gear position detection, ensuring that the transmission control unit (TCU) receives accurate information about the driver's gear selection. The switch transmits digital signals to the TCU in less than 10 milliseconds, providing near - instantaneous communication. This rapid and accurate signal transmission eliminates any potential lag in gear engagement, resulting in smooth and seamless gear shifts. Whether the driver is shifting from park to drive or between different gears during acceleration or deceleration, the switch ensures that the TCU can respond promptly and accurately, enhancing the overall driving experience.

4. Comprehensive Safety Features

Park/Neutral Safety Interlock: The switch is designed with a built - in park/neutral safety interlock mechanism. Before the engine can be started, the switch verifies that the gear lever is in either the "P" (Park) or "N" (Neutral) position. This prevents the engine from starting if the vehicle is accidentally left in gear, reducing the risk of sudden and unexpected vehicle movement, which could lead to accidents.

Shift Lock Function: In conjunction with the brake pedal switch, the shift lock function ensures that the gear lever remains locked in the "P" position until the brake pedal is depressed. This safety feature helps to prevent the vehicle from rolling away when parked on slopes or uneven surfaces. It provides an additional layer of protection, especially in situations where the parking brake may not be fully engaged or may malfunction.

Electrical Protection: To safeguard against electrical malfunctions, the switch is equipped with over - current protection, short - circuit protection, and reverse - polarity protection. These protection mechanisms prevent damage to the switch and the vehicle's electrical system in case of electrical surges, wiring errors, or other electrical issues. This ensures the safe and reliable operation of the switch under various electrical conditions.

5. Cost - Effective Solution

Despite offering OE - equivalent performance, the 84540 - 52110 gear shift switch is priced more competitively, typically 20 - 30% lower than genuine Toyota OEM switches. This cost - effectiveness makes it an attractive option for vehicle owners and repair shops looking to replace a faulty gear shift switch without sacrificing quality. In addition to the lower purchase price, the switch's long - lasting durability reduces the frequency of replacements, further saving on maintenance costs over time. Its modular design also allows for the replacement of individual components in case of failure, rather than having to replace the entire switch, which can result in significant cost savings for repairs.

6. Ergonomic and User - Friendly Design

The switch's lever is designed with ergonomics in mind, featuring a non - slip rubber grip that provides a comfortable and secure hold for the driver. The grip is designed to be easy to operate, even with gloved hands, making it suitable for use in various weather conditions. The detent mechanism of the switch provides clear tactile feedback when the driver shifts gears, with a resistance level of 2.0 - 2.5N. This feedback helps the driver to confirm the gear selection without having to look at the gear indicator, reducing distractions while driving. The switch's compact and streamlined design also ensures that it fits seamlessly into the vehicle's dashboard or center console, maintaining the vehicle's interior aesthetics without causing any interference or discomfort to the driver.
