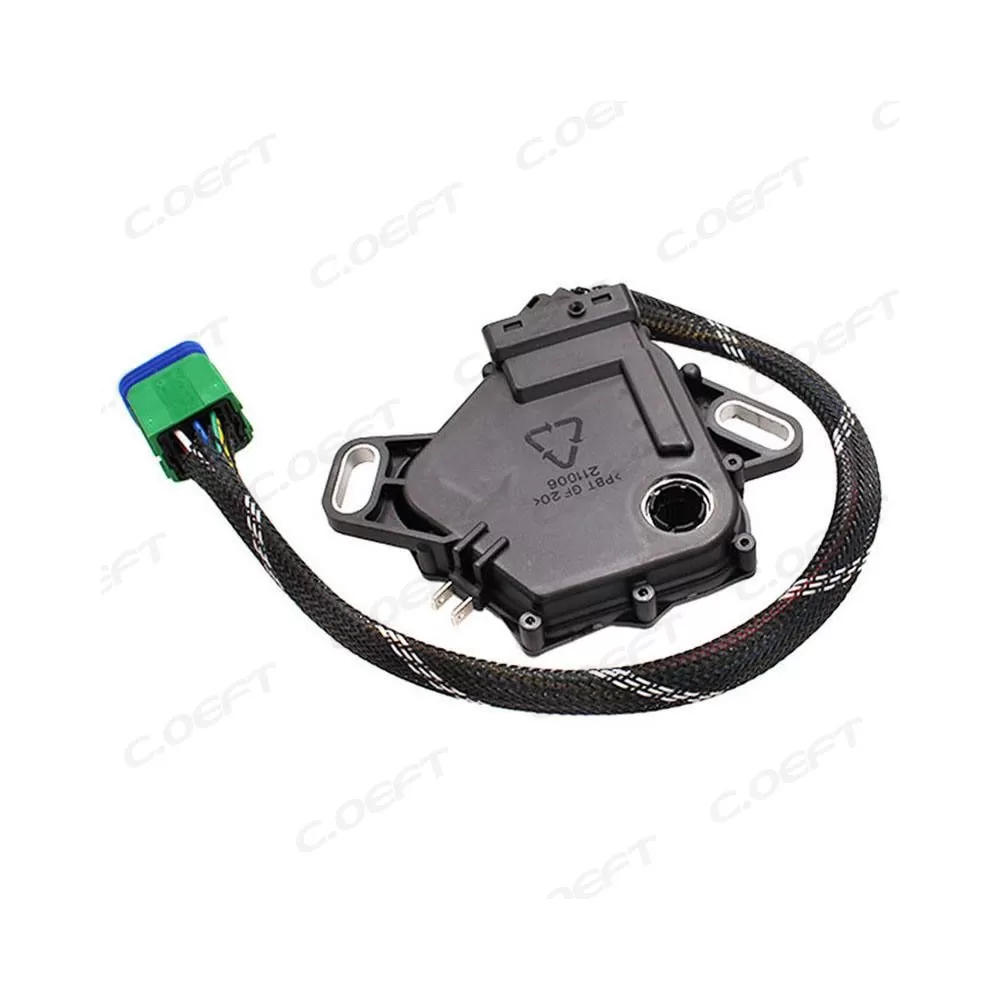

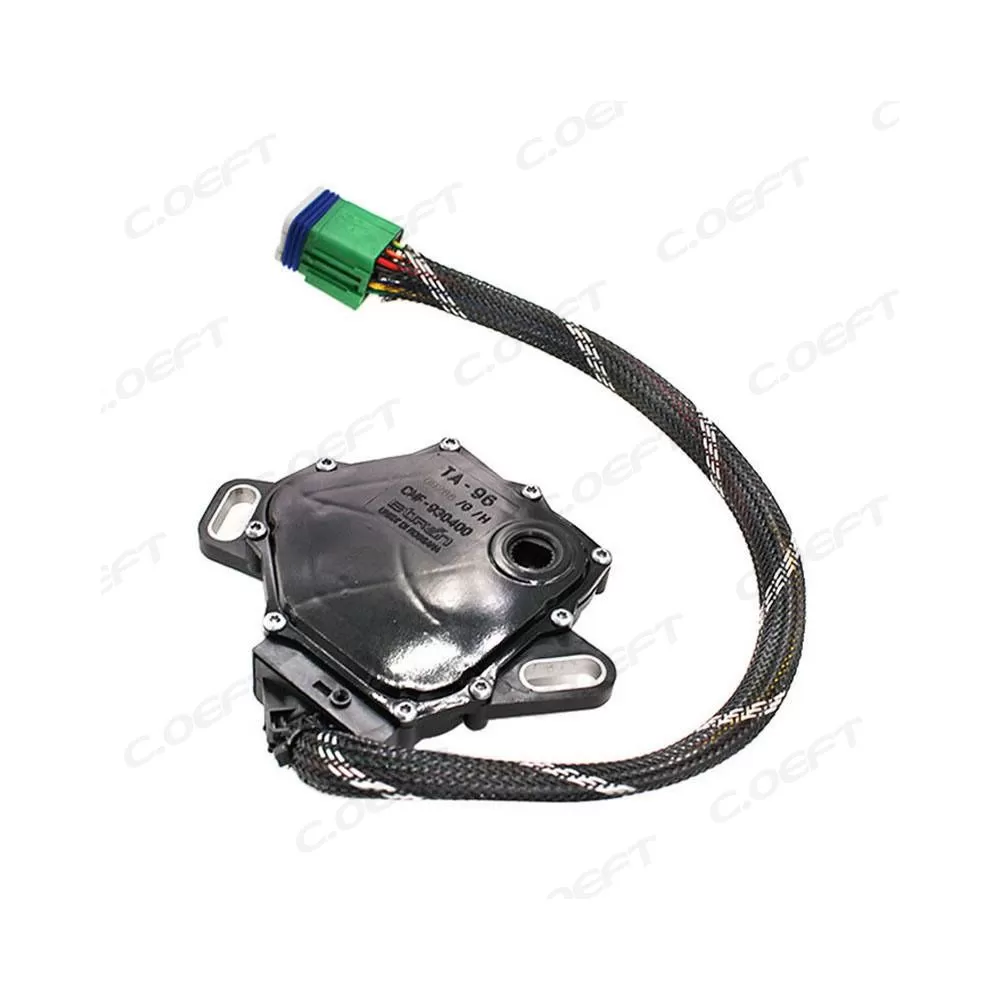

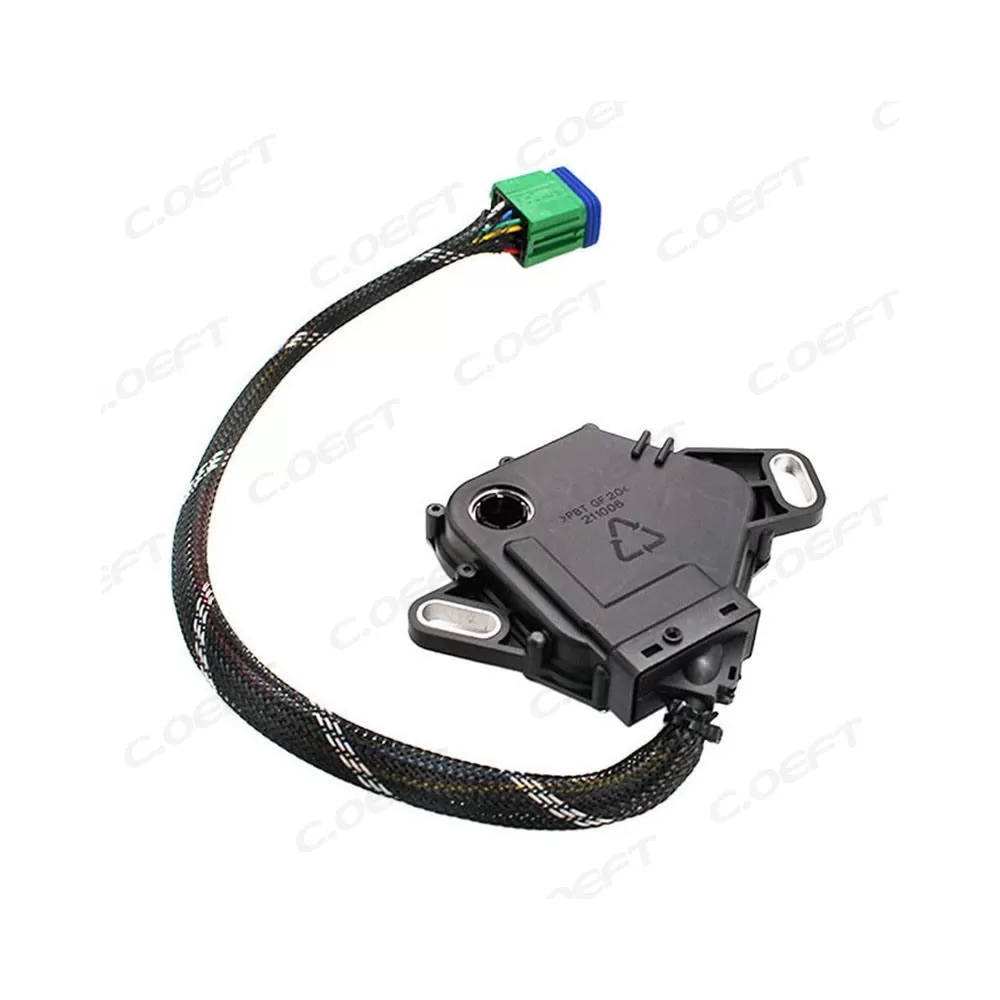

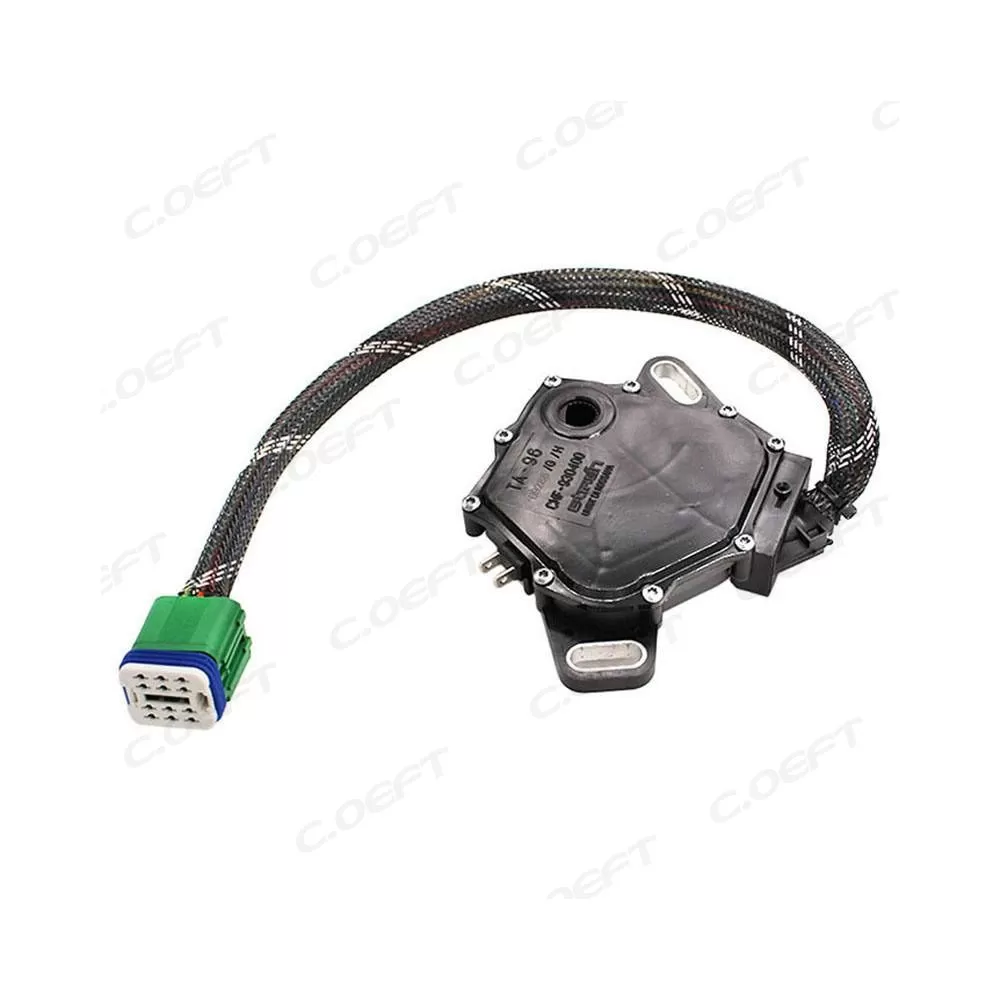

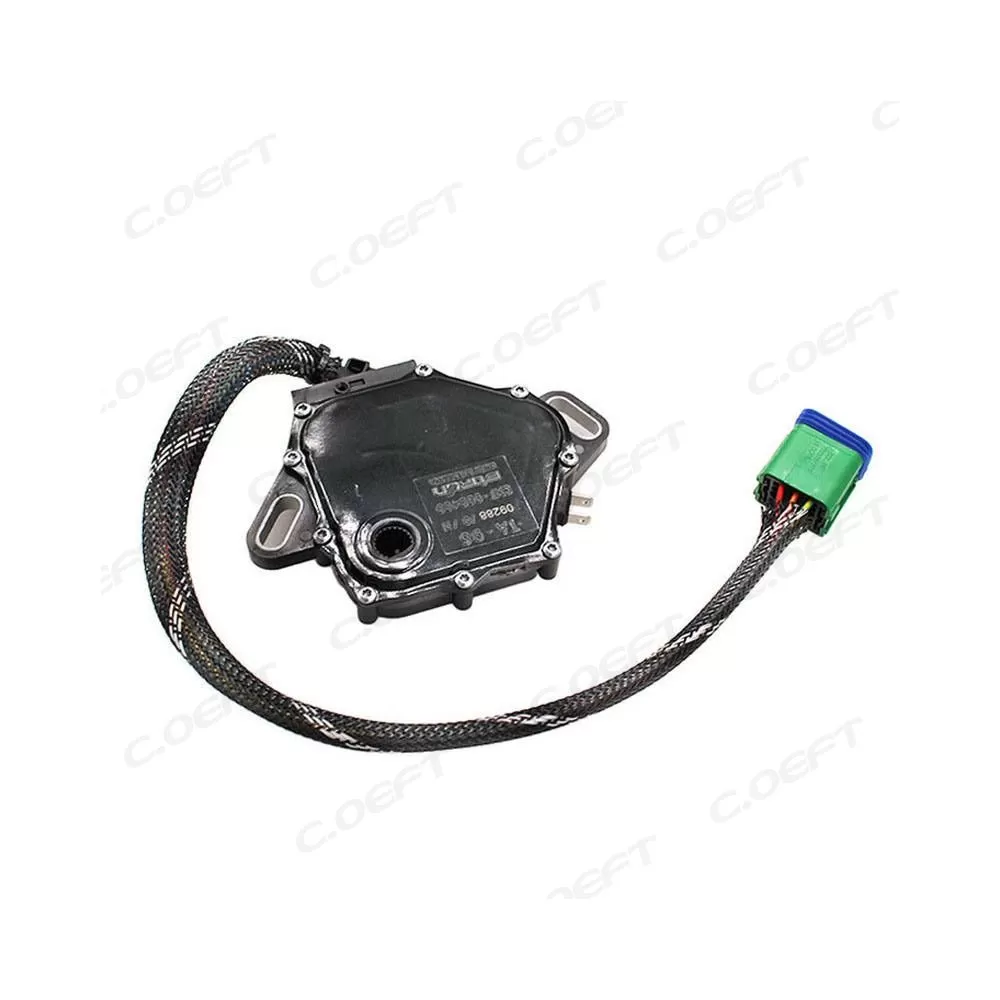

AL4 252927

1. Gear Position Detection and Signal Transmission

The primary function of the AL4 DP0 252927 gear selector switch is to accurately detect the position of the gear - shift lever. When the driver moves the gear - shift lever to positions such as park (P), reverse (R), neutral (N), drive (D), or other specific gear positions in a multi - speed automatic transmission, the switch's internal sensors immediately detect this movement. These sensors are highly sensitive and precise, ensuring that even the slightest movement of the gear - shift lever is recognized. Once the position is detected, the switch converts this mechanical position into an electrical signal. This electrical signal is then transmitted to the vehicle's TCU via a dedicated electrical connection. For example, when the gear - shift lever is moved to the "D" position, the switch sends a specific electrical signal to the TCU. The TCU, in turn, interprets this signal as the "drive" command and activates the appropriate components within the transmission system to engage the drive gears. This signal transmission process is fundamental for the proper functioning of the vehicle's transmission, allowing the TCU to control the operation of the transmission based on the driver's gear selection.

2. Neutral Safety Switch Function

The AL4 DP0 252927 gear selector switch incorporates a crucial neutral safety switch function, which is a vital safety feature in modern vehicles. When the ignition key is turned to start the vehicle, the switch's neutral safety mechanism comes into play. It checks the position of the gear - shift lever. If the gear - shift lever is in the park (P) or neutral (N) position, the switch closes a circuit within the vehicle's starting system. This closed circuit allows electrical power to flow from the vehicle's battery to the starter motor, enabling the engine to be cranked and started. However, if the gear - shift lever is in any other gear position, such as drive (D), reverse (R), or a lower - gear position in a manual - shift mode (if applicable), the switch opens the circuit. This open circuit prevents electrical power from reaching the starter motor, effectively stopping the vehicle from starting while in gear. This neutral safety switch function helps prevent accidental vehicle movement during the starting process, which could lead to serious accidents and property damage.

3. Compatibility with Transmission Control Logic

The gear selector switch works in close harmony with the vehicle's overall transmission control logic. The electrical signals it sends to the TCU are not only used for basic gear selection but also for more complex transmission operations. In modern vehicles with advanced transmission systems, the TCU uses the gear - position signal from the switch, along with other input signals from various vehicle sensors (such as vehicle speed sensors, throttle position sensors, and engine load sensors), to optimize the operation of the transmission. For example, in "sport" mode, the TCU may use the gear - position information from the AL4 DP0 252927 switch to hold gears longer and shift at higher engine speeds for improved performance. In "eco" mode, it may use the same information to shift gears earlier to enhance fuel efficiency. The switch's signals are also used in the control of the torque converter lock - up, which helps improve the efficiency of the transmission by directly connecting the engine to the transmission under certain driving conditions. In addition, the TCU may use the gear - position signal to perform diagnostic functions. If the TCU detects an inconsistent or incorrect gear - position signal from the switch, it can trigger a diagnostic trouble code (DTC) and illuminate the vehicle's check engine light, indicating a potential problem with the gear - shifting system.

4. Indicator Light Control

Another important function of the AL4 DP0 252927 gear selector switch is to control the gear - position indicator lights on the vehicle's dashboard. When the driver changes the gear position, the switch sends signals not only to the TCU but also to the dashboard electronics. These signals are used to illuminate the appropriate gear - position indicator light on the dashboard, such as the "P", "R", "N", "D", or gear - number indicators in a manual - shift mode. This provides the driver with clear visual feedback about the current gear position of the vehicle. The indicator lights are not only a convenience feature but also a safety feature. They ensure that the driver is always aware of the gear the vehicle is in, which is especially important in situations where quick gear changes are required, such as during overtaking or in traffic. In addition, the indicator lights can also be used by other road users, such as pedestrians and other drivers, to anticipate the vehicle's movement, further enhancing overall road safety.

5. Pressure Sensing Function (if applicable)

Some versions of the AL4 DP0 252927 gear selector switch may incorporate a pressure - sensing function. In an automatic transmission, transmission fluid pressure is crucial for the proper operation of the hydraulic system that controls gear shifting. The switch, if equipped with a pressure sensor, can monitor the transmission fluid pressure. It sends this pressure information to the TCU as an additional input. The TCU can then use this pressure data, along with the gear - position signal, to make more informed decisions about gear shifting. For example, if the transmission fluid pressure is too low, the TCU may delay gear shifts or take other corrective actions to prevent damage to the transmission. This pressure - sensing function, when present, adds an extra layer of functionality and precision to the overall operation of the transmission system.
