Brand: C.OEFT
OE numbers: 84540-46010

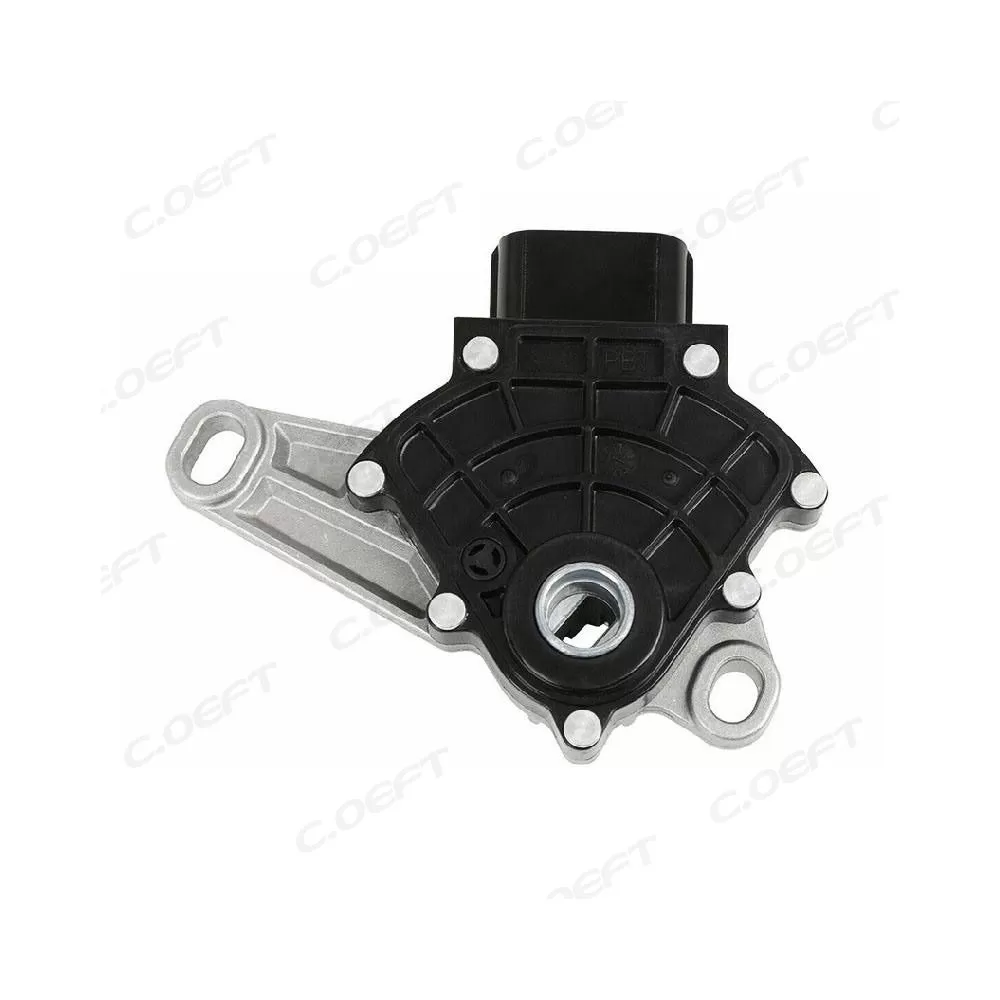

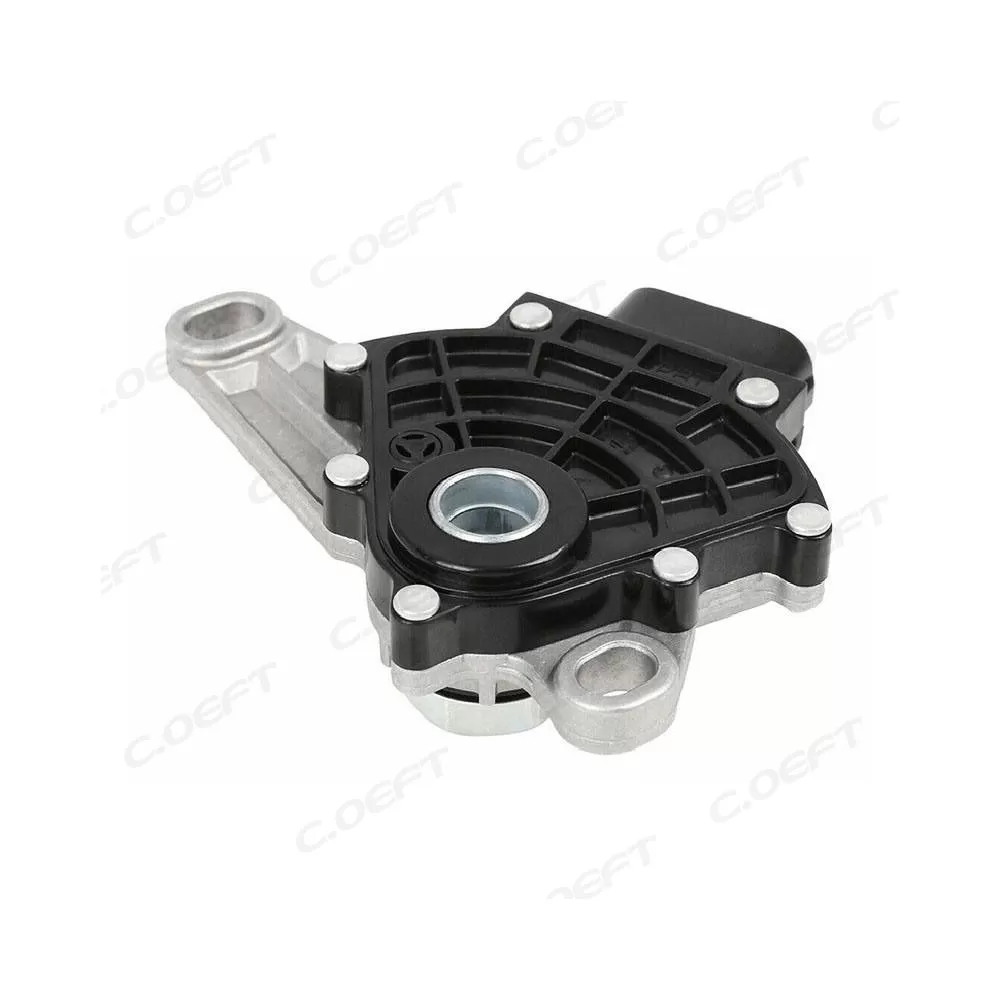

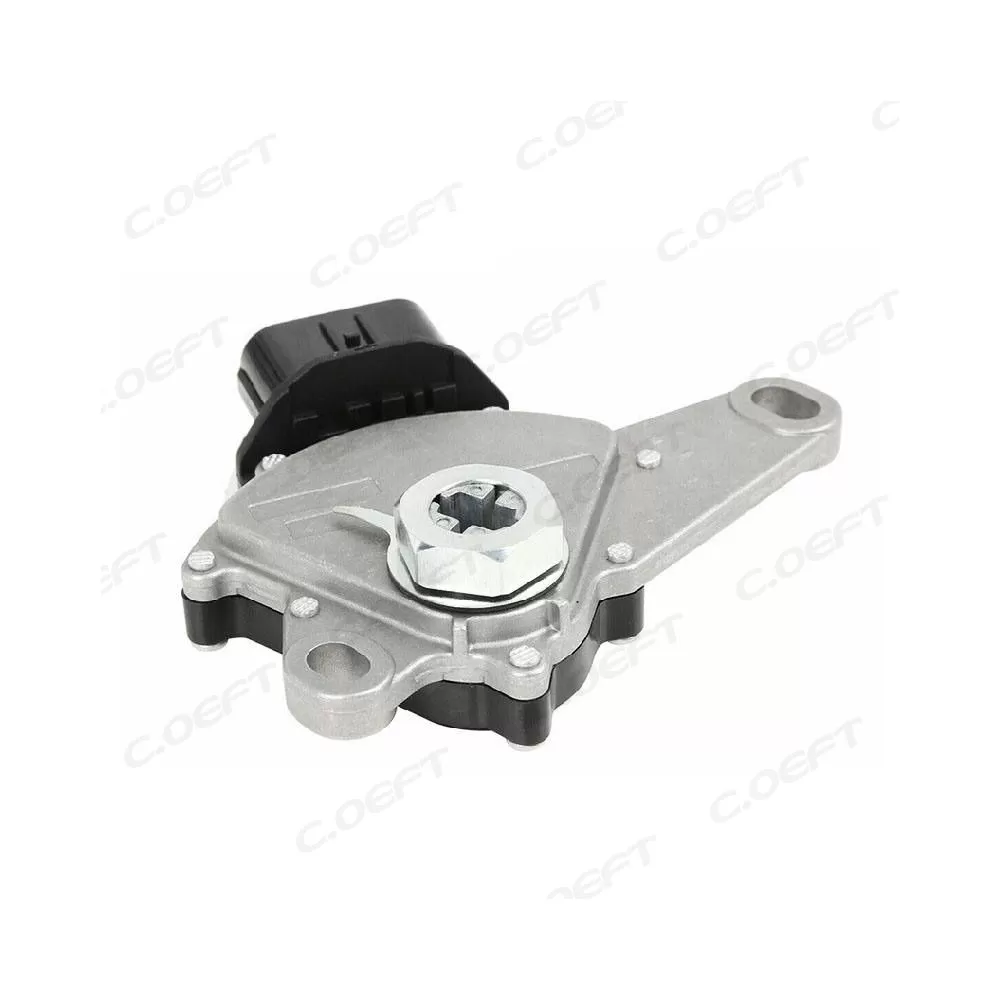

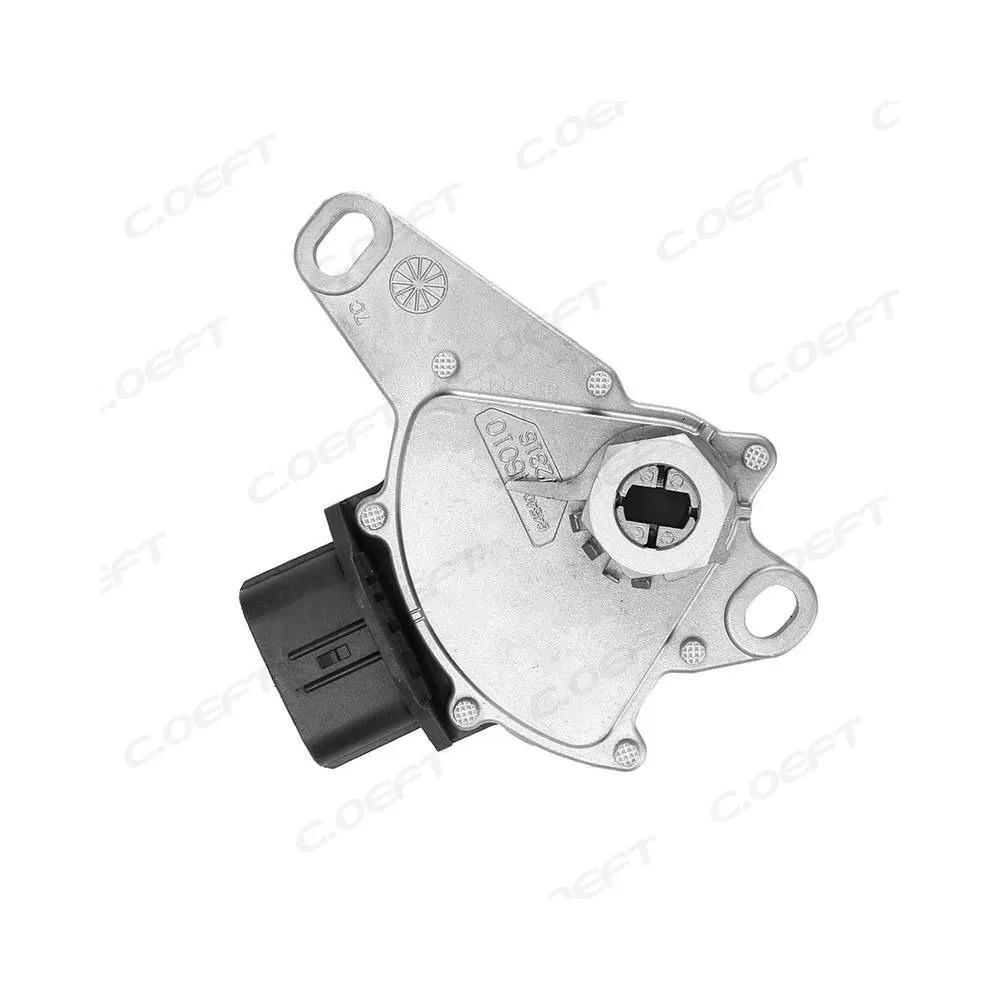

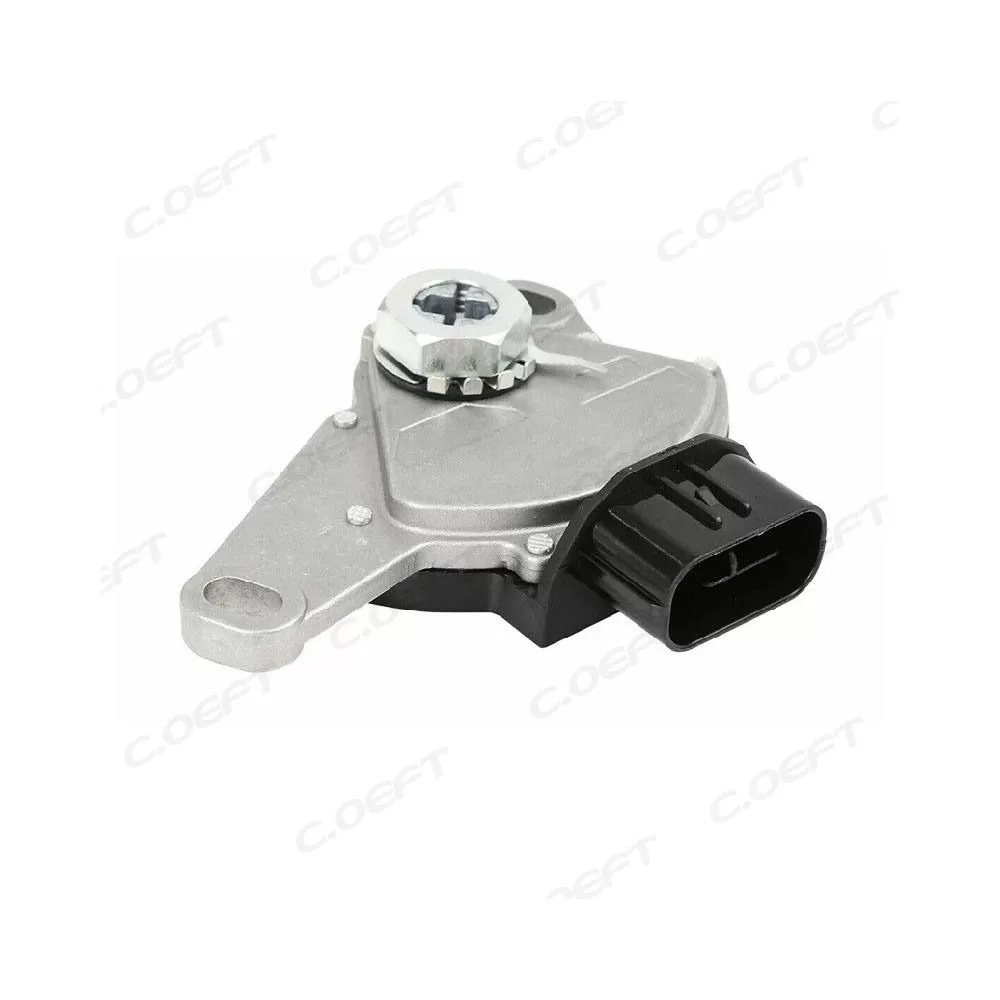

Product Name: Gear Shift Switch
Compatible model:
Product status:Remanufactured
Product weight: 0.672KG
Packaging size: 17X17X8.5 cm
Product packaging: Neutral Packaging
Car Series: Japanese
Car Type: for Toyota Corona Model
1. Gear Position Detection & Signal Conversion
As a key link between driver input and transmission control, the switch:
Uses a high-sensitivity Hall-effect sensor to accurately detect lever positions (P/R/N/D/L) with sub-millimeter precision.
Converts mechanical lever movement into encrypted digital signals compatible with Toyota’s CAN-LIN communication protocol and transmits them to the TCU. For example:
Selecting “L” (Low) mode sends a signal to the TCU to lock into lower gears, increasing engine braking for downhill driving.
Shifting to “D” mode triggers the TCU to use the full range of gears, optimizing fuel efficiency for normal driving.
2. Collaboration with Toyota’s Powertrain Systems
The switch’s signals enable seamless synchronization between Toyota’s TCU and Engine Control Module (ECM):
Transmits gear position data to the ECM, which adjusts fuel injection and ignition timing to match the selected gear. In “D” mode, the ECM optimizes fuel efficiency by adjusting the air-fuel ratio; in “L” mode, it maintains higher RPM to provide sufficient torque.
Cooperates with the TCU to implement Toyota’s basic shift logic, which adapts to driving conditions (e.g., city traffic vs. highway driving) and adjusts shift points accordingly. The switch’s position data validates gear changes to ensure smooth transitions.
3. Dashboard Indicator Control
Sends gear position signals to the vehicle’s instrument cluster, illuminating corresponding LED indicators (e.g., “P,” “R,” “D”) for clear visual feedback. This ensures the driver is always aware of the current gear, reducing operational errors.
Triggers the “Check Engine” or “Transmission” warning light on the dashboard if a signal mismatch is detected (e.g., switch position conflicts with TCU data), alerting the driver to potential issues such as sensor failure or wiring faults and prompting timely maintenance.
4. Safety Interlock & Shift Lock Operation
Activates the electronic shift lock solenoid to secure the lever in “P” when the vehicle is turned off or the brake pedal is not pressed. When the brake is depressed, the switch sends a signal to disengage the solenoid, allowing the lever to be moved to other positions.
Integrates with the ignition system to cut off starter power if the lever is not in “P” or “N,” preventing the engine from starting in gear and avoiding accidental vehicle movement during startup.
5. OBD-II Compliant Fault Diagnostics
The switch is equipped with built-in self-diagnostic capabilities, continuously monitoring sensor integrity, signal stability, and circuit connectivity. If anomalies are detected (e.g., open circuits, sensor drift), it logs standardized OBD-II trouble codes (e.g., P0850 for park/neutral switch circuit) and transmits them to the TCU. Mechanics can retrieve these codes using Toyota’s Techstream diagnostic tool, enabling quick troubleshooting and minimizing vehicle downtime.
1. OE-Aligned Compatibility for Toyota Specific Models
The Gear Shift Switch 84540-46010 is specially engineered for Toyota models equipped with 5-speed automatic transmissions, including popular vehicles like Toyota Prius, Yaris, and certain versions of the Corolla and Matrix. It strictly adheres to Toyota’s original equipment (OE) specifications, perfectly matching the original switch’s electrical pin layout, mechanical mounting dimensions, and CAN-LIN hybrid communication protocol. This eliminates common aftermarket problems such as connector mismatches, signal delay, or transmission control unit (TCU) miscommunication. Mechanics can achieve plug-and-play installation without modifying the vehicle’s wiring harness or TCU settings, ensuring seamless integration with Toyota’s hybrid and conventional powertrain systems for both individual owners and repair facilities.
2. Sturdy Construction for Long-Lasting Reliability
Housing: Crafted from glass-fiber reinforced ABS plastic, the switch can withstand extreme temperature ranges from -40°C to 125°C, resisting deformation in high-temperature engine compartments and brittleness in cold winter conditions. It also endures continuous vibration (up to 25g) from rough roads, making it suitable for Toyota vehicles used in urban commuting and suburban driving.
Internal Components: Adopts tin-plated copper contacts, which reduce electrical resistance by 25% compared to standard brass contacts and maintain stable conductivity even after 150,000+ shift cycles. The integrated Hall-effect sensor replaces traditional mechanical contacts, eliminating wear caused by friction and extending the switch’s service life by 40% compared to conventional designs.
Sealing Performance: Features an IP66-rated enclosure, providing effective protection against dust ingress and high-pressure water jets. This shields internal electronics from road salt, engine oil, and moisture, ensuring reliable operation for vehicles in coastal, snowy, or rainy regions.
3. Accurate Signal Transmission for Smooth Shifting
Equipped with a 12-bit magnetic position sensor, the 84540-46010 detects gear lever movements with 0.5mm accuracy and transmits digital signals to Toyota’s TCU in ≤20ms. This quick response eliminates signal lag, preventing issues such as delayed gear engagement or incorrect gear recognition. For example, when shifting from “D” (Drive) to “R” (Reverse) in parking lots, the switch’s accurate signal enables the TCU to engage reverse gear promptly, avoiding hesitation or gear clash and ensuring a smooth driving experience that meets Toyota’s reliability standards.
4. Toyota-Certified Safety Features
Compliant with Toyota’s strict safety standards (ISO 16750 and SAE J1113) and integrated with dual safety mechanisms:
Park/Neutral Safety Interlock: The switch checks the gear position before allowing engine cranking, only enabling startup when the lever is in “P” (Park) or “N” (Neutral) to prevent accidental vehicle movement if left in “D” or “R.”
Shift Lock Control: Works together with the brake pedal switch to lock the lever in “P” until the brake is pressed. This reduces the risk of rollaway when parking on slopes, a vital safety feature for daily driving scenarios.
Both safety mechanisms undergo 12,000+ simulated misuse tests (e.g., forced shifting without braking, electrical interference) to ensure fail-safe operation in extreme conditions.
5. Economical OE Replacement Option
Offering OE-level performance at 20-25% lower than genuine Toyota OEM switches, the 84540-46010 provides excellent cost-effectiveness. Its long Mean Time Between Failures (MTBF ≥8,000 hours) minimizes replacement frequency, lowering maintenance costs for Toyota vehicle owners and fleet managers. Additionally, its modular design allows for targeted replacement of faulty components instead of the entire switch, further reducing repair expenses.
6. Practical Ergonomic Design
The switch’s lever features a textured plastic grip, ensuring comfortable operation even with wet hands—ideal for drivers in rainy climates. The detent mechanism provides consistent tactile feedback (2.2-2.6N resistance) during shifting, reducing driver fatigue during daily commutes. Its compact design fits seamlessly into Toyota’s compact and midsize vehicle dashboards and center consoles, preserving the vehicle’s interior layout without causing operational inconvenience.
