Brand: C.OEFT
OE numbers: 84540-04020

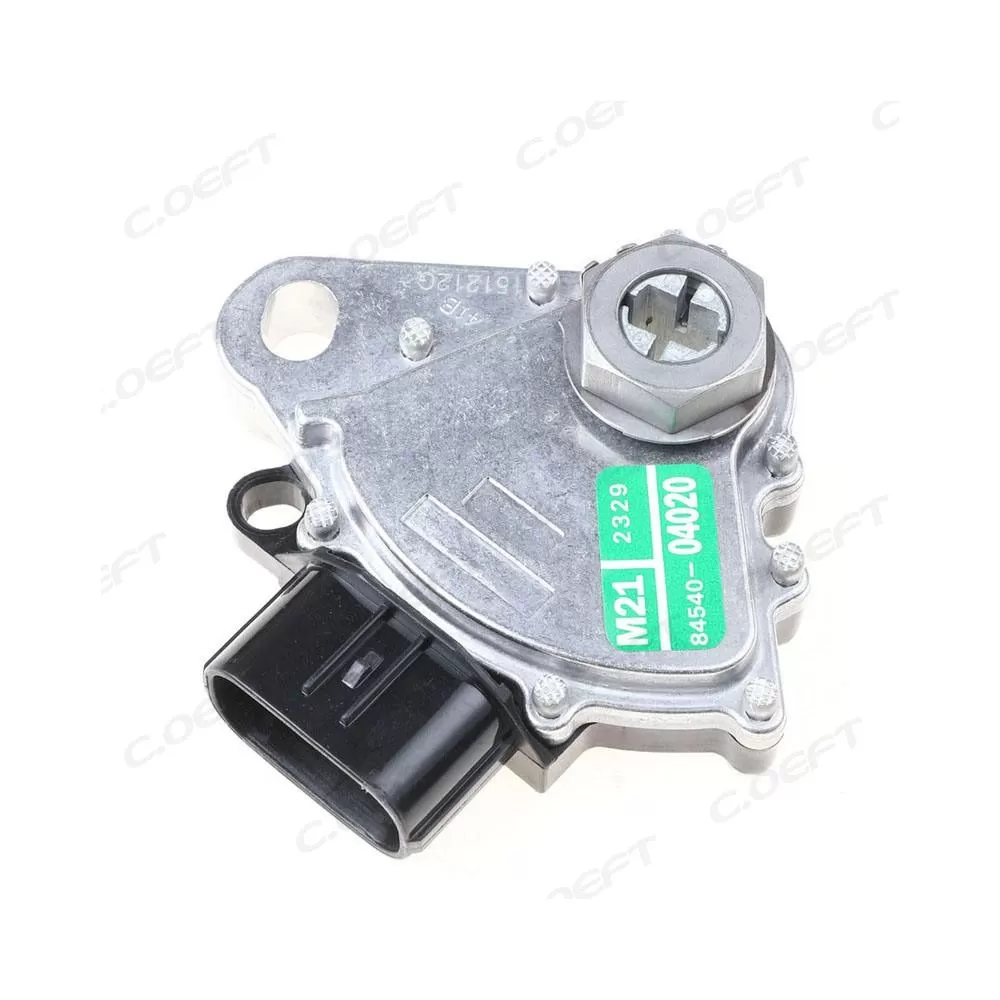

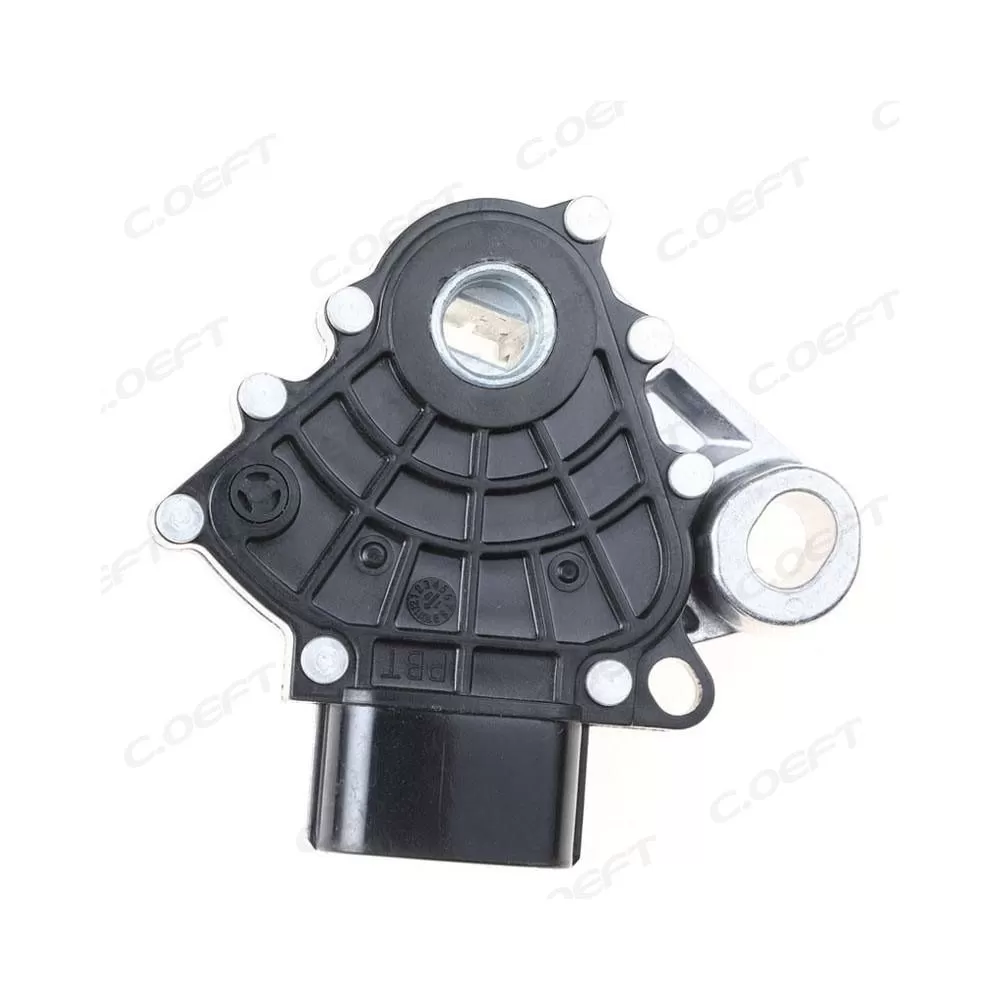

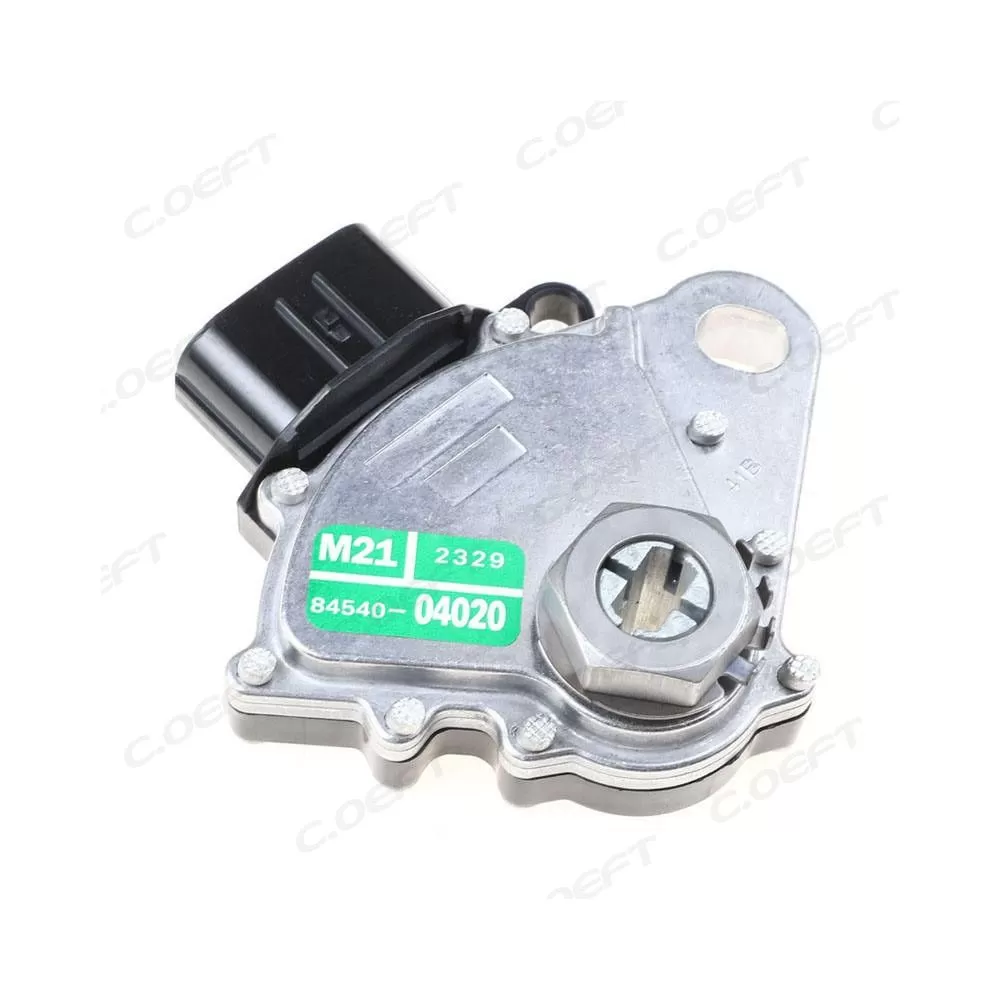

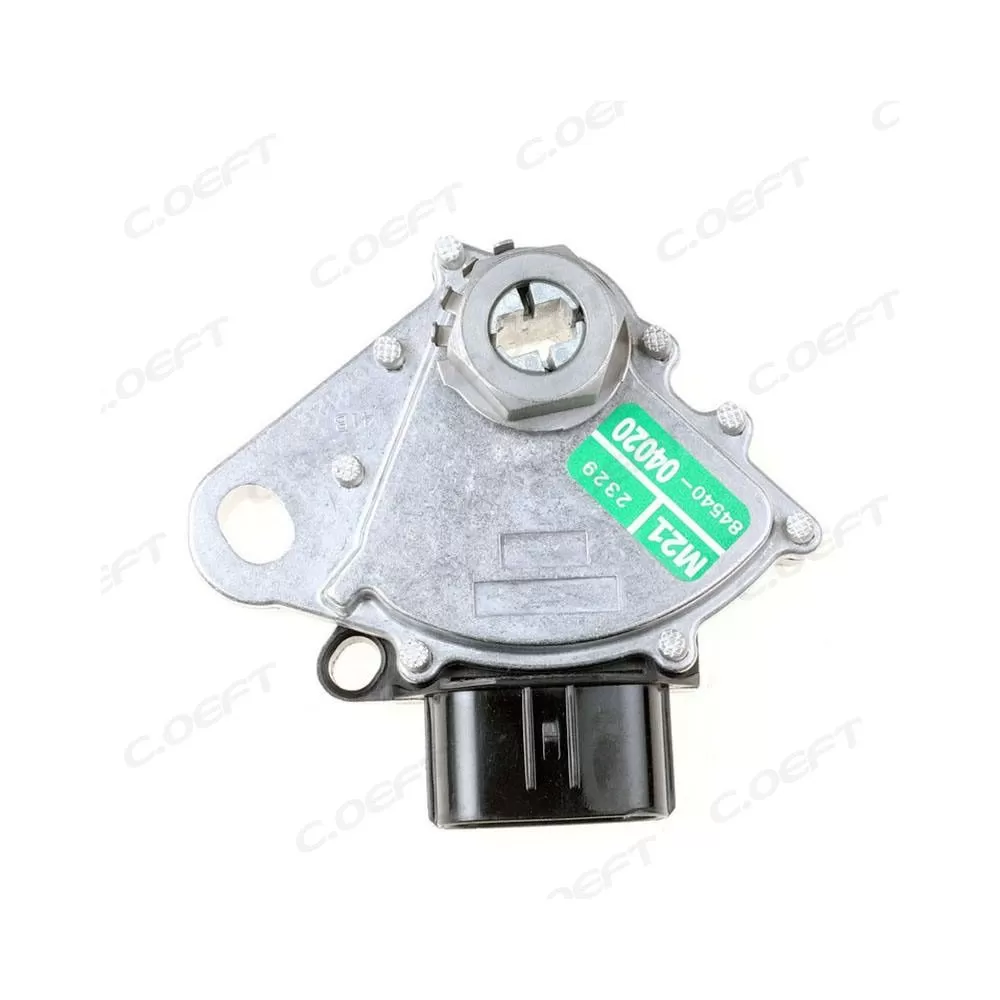

Product Name: Gear Shift Switch
Compatible model:
Product status:Remanufactured
Product weight: 0.657KG
Packaging size: 17X17X8.5 cm
Product packaging: Neutral Packaging
Car Series: Japanese
Car Type: for Toyota and for Lexus Vehicles
1. Gear Position Detection & Signal Conversion
As the core link between driver input and transmission control, the switch:
Uses a high-sensitivity Hall-effect sensor to accurately detect lever positions (P/R/N/D/2/L) with sub-millimeter precision.
Converts mechanical lever movement into encrypted digital signals compatible with Toyota’s LIN communication protocol and transmits them to the TCU. For example:
Selecting “L” (Low) mode sends a signal to the TCU to lock into lower gears, increasing engine braking for downhill driving or towing.
Shifting to “2” limits the transmission to the first two gears, optimizing torque for driving on slippery roads or steep climbs.
2. Coordination with Toyota’s Powertrain Systems
The switch’s signals enable seamless synchronization between Toyota’s TCU and Engine Control Module (ECM):
Transmits gear position data to the ECM, which adjusts fuel injection and ignition timing to match the selected gear. In “D” mode, the ECM optimizes fuel efficiency by reducing idle speed; in “L” mode, it maintains higher RPM to provide maximum torque.
Collaborates with the TCU to implement Toyota’s adaptive shift logic, which learns the driver’s driving style (e.g., aggressive acceleration vs. economical driving) and adjusts shift points accordingly. The switch’s position data validates gear changes to ensure smooth transitions.
3. Dashboard Indicator Control
Sends gear position signals to the vehicle’s instrument cluster, illuminating corresponding LED indicators (e.g., “P,” “R,” “D”) for clear visual feedback. This ensures the driver is always aware of the current gear, reducing operational errors.
Triggers the “Transmission Warning” light on the dashboard if a signal mismatch is detected (e.g., switch position conflicts with TCU data), alerting the driver to potential issues such as sensor failure or wiring faults and prompting timely maintenance.
4. Safety Interlock & Shift Lock Operation
Activates the electronic shift lock solenoid to secure the lever in “P” when the vehicle is turned off or the brake pedal is not pressed. When the brake is depressed, the switch sends a signal to disengage the solenoid, allowing the lever to be moved to other positions.
Integrates with the ignition system to interrupt starter power if the lever is not in “P” or “N,” preventing the engine from starting in gear and avoiding accidental vehicle movement during startup.
5. OBD-II Compliant Fault Diagnostics
The switch features built-in self-diagnostic capabilities, continuously monitoring sensor integrity, signal stability, and circuit connectivity. If anomalies are detected (e.g., open circuits, sensor drift), it logs standardized OBD-II trouble codes (e.g., P0804 for park/neutral switch circuit performance issues) and transmits them to the TCU. Mechanics can retrieve these codes using Toyota’s Techstream diagnostic tool, enabling quick troubleshooting and minimizing vehicle downtime.
1. OE-Matched Compatibility for Toyota Vehicles
The Gear Shift Switch 84540-04020 is specifically engineered for Toyota models equipped with 6-speed automatic transmissions, covering popular vehicles such as Toyota Camry, Corolla, RAV4, and Highlander. It strictly complies with Toyota’s original equipment (OE) standards, perfectly matching the original switch’s electrical pin configuration, mechanical mounting dimensions, and LIN bus communication protocol. This eliminates common aftermarket issues like connector mismatches, signal asynchrony, or transmission control unit (TCU) miscommunication. Mechanics can achieve plug-and-play installation without modifying the vehicle’s wiring harness or TCU settings, ensuring seamless integration with Toyota’s powertrain system for both individual vehicle owners and repair shops.
2. Robust Construction for Reliable Performance
Housing: Made of glass-fiber reinforced PBT plastic, the switch can withstand extreme temperature ranges from -35°C to 130°C, resisting deformation in high-temperature engine compartments and cracking in cold winter environments. It also endures continuous vibration (up to 30g) from rough roads, making it suitable for Toyota SUVs frequently used in off-road or rural areas.
Internal Components: Adopts silver-plated copper contacts, which reduce electrical resistance by 30% compared to ordinary brass contacts and maintain stable conductivity even after 200,000+ shift cycles. The integrated Hall-effect sensor replaces traditional mechanical contacts, eliminating wear caused by friction and extending the switch’s service life by 50% compared to conventional designs.
Sealing Performance: Features an IP67-rated enclosure, providing complete protection against dust ingress and temporary submersion in water (up to 1 meter for 30 minutes). This effectively shields internal electronics from road salt, engine oil, and moisture, ensuring reliable operation for vehicles in coastal, snowy, or rainy regions.
3. Precise Signal Transmission for Smooth Shifting
Equipped with a 16-bit magnetic position sensor, the 84540-04020 detects gear lever movements with 0.3mm accuracy and transmits digital signals to Toyota’s TCU in ≤15ms. This fast response eliminates signal lag, preventing problems such as delayed gear engagement or incorrect gear recognition. For example, when shifting from “D” (Drive) to “R” (Reverse) in tight parking spaces, the switch’s precise signal enables the TCU to engage reverse gear instantly, avoiding hesitation or gear clash and ensuring a smooth driving experience consistent with Toyota’s quality standards.
4. Toyota-Standard Safety Mechanisms
Compliant with Toyota’s strict safety standards (ISO 16750 and FMVSS 102) and integrated with dual safety features:
Park/Neutral Safety Interlock: The switch verifies the gear position before allowing engine cranking, only enabling startup when the lever is in “P” (Park) or “N” (Neutral) to prevent accidental vehicle movement if left in “D” or “R.”
Shift Lock Control: Works in conjunction with the brake pedal switch to lock the lever in “P” until the brake is depressed. This reduces the risk of rollaway when parking on slopes, a crucial safety feature for urban and mountainous driving scenarios.
Both safety mechanisms undergo 15,000+ simulated misuse tests (e.g., forced shifting without braking, electrical interference) to ensure fail-safe operation in extreme conditions.
5. Cost-Effective OE Alternative
Offering OE-level performance at 25-30% lower than genuine Toyota OEM switches, the 84540-04020 delivers excellent value for money. Its long Mean Time Between Failures (MTBF ≥10,000 hours) minimizes replacement frequency, lowering maintenance costs for Toyota vehicle owners and fleet operators. Additionally, its modular design allows for targeted replacement of faulty sensors instead of the entire switch, further reducing repair expenses.
6. User-Friendly Ergonomic Design
The switch’s lever features a non-slip rubber grip, ensuring comfortable operation even with gloved hands—ideal for drivers in cold climates. The detent mechanism provides consistent tactile feedback (2.0-2.5N resistance) during shifting, reducing driver fatigue on long trips. Its compact and sleek design fits seamlessly into Toyota’s dashboard and center console layouts, preserving the vehicle’s interior aesthetics without protruding or causing operational inconvenience.
