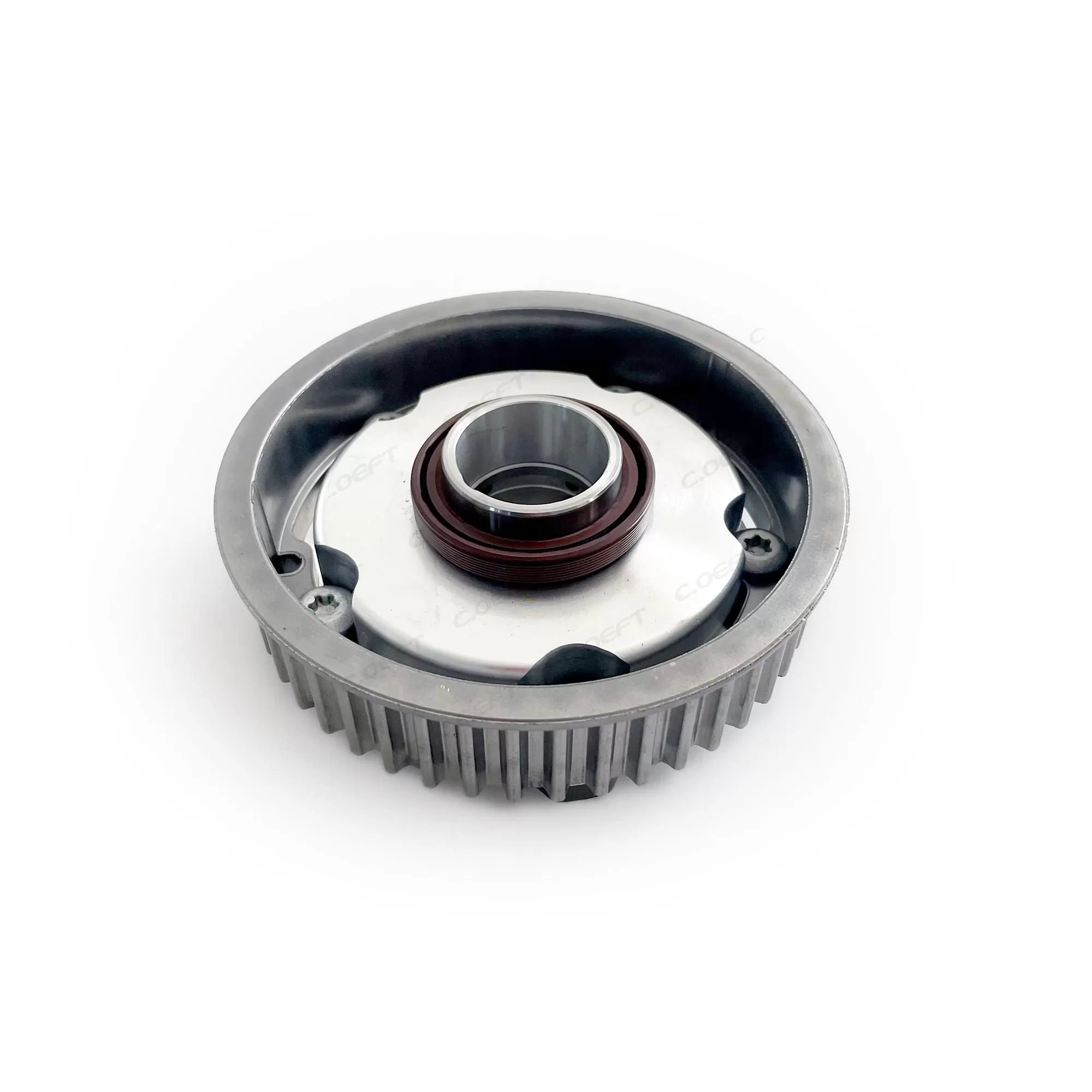

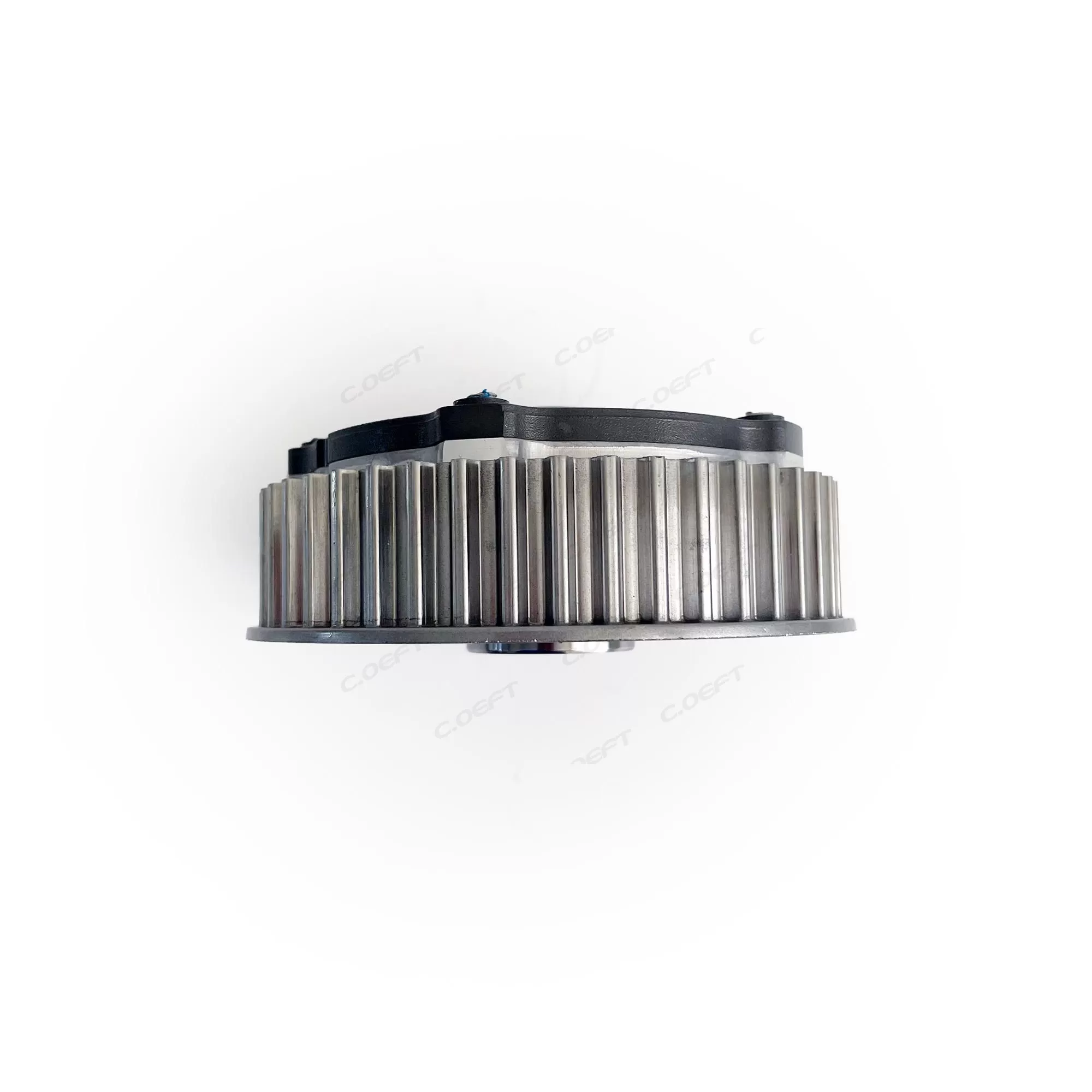

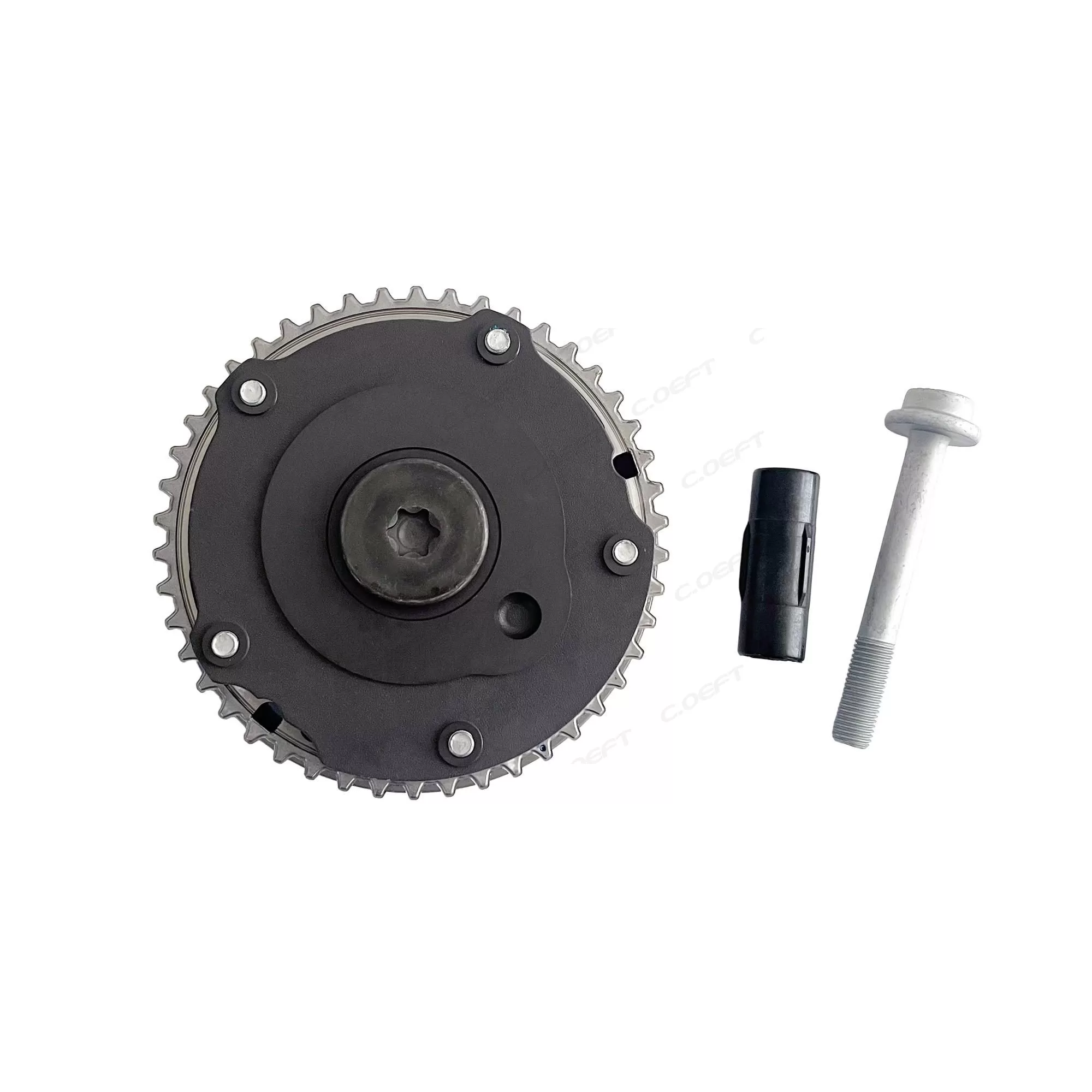

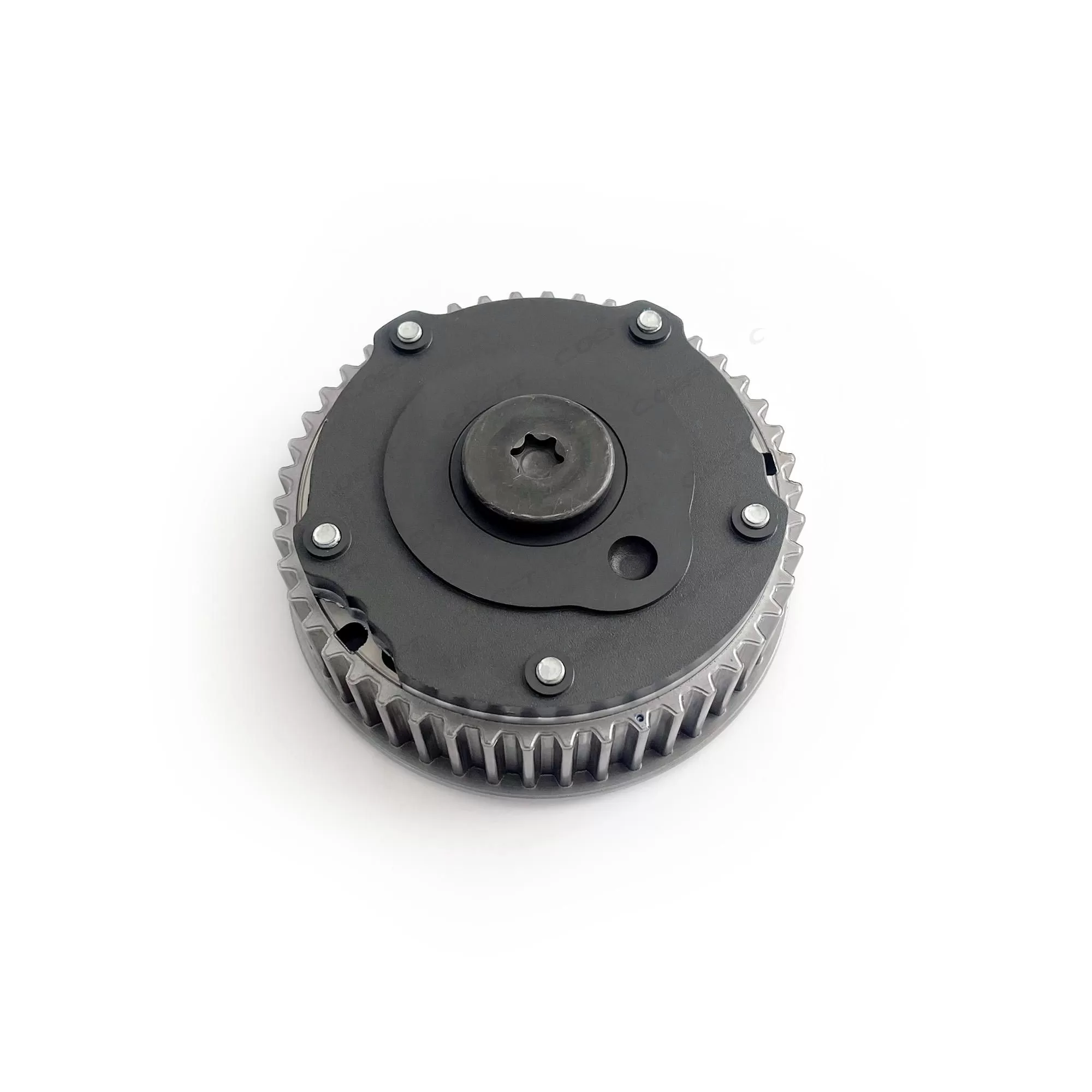

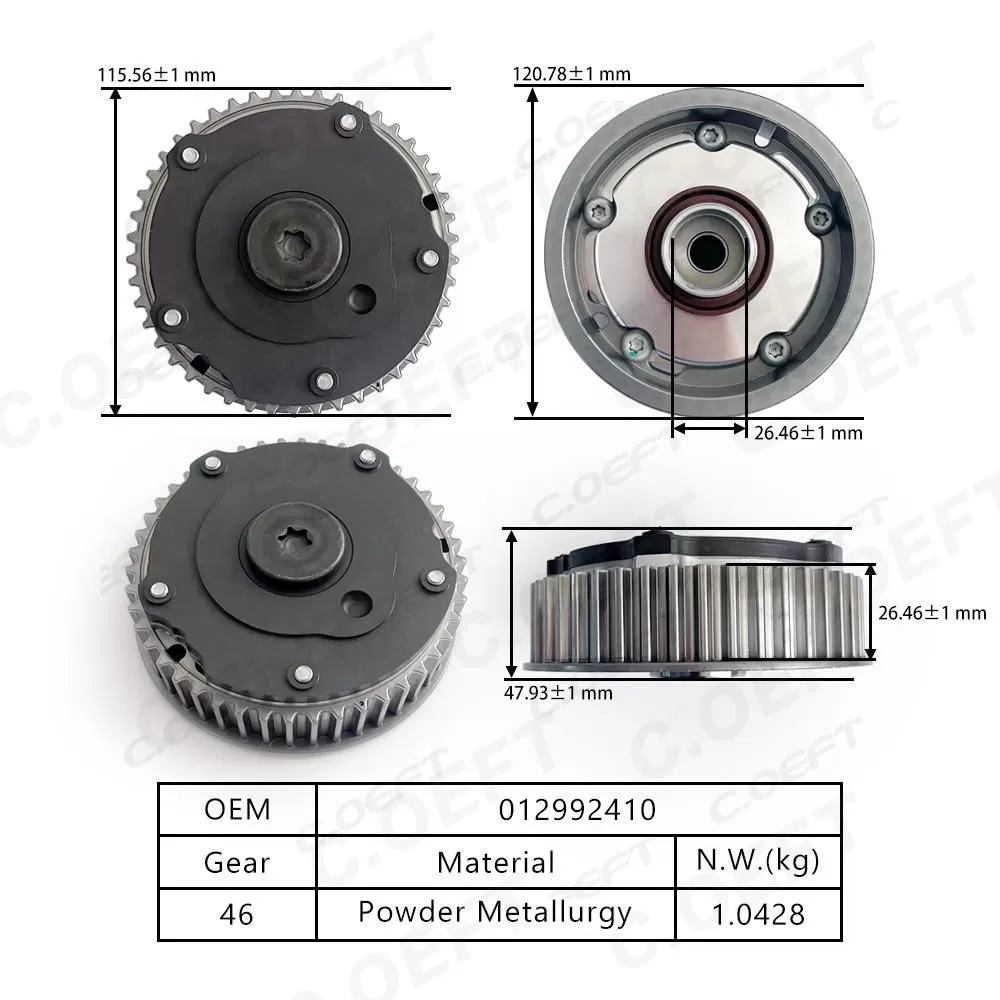

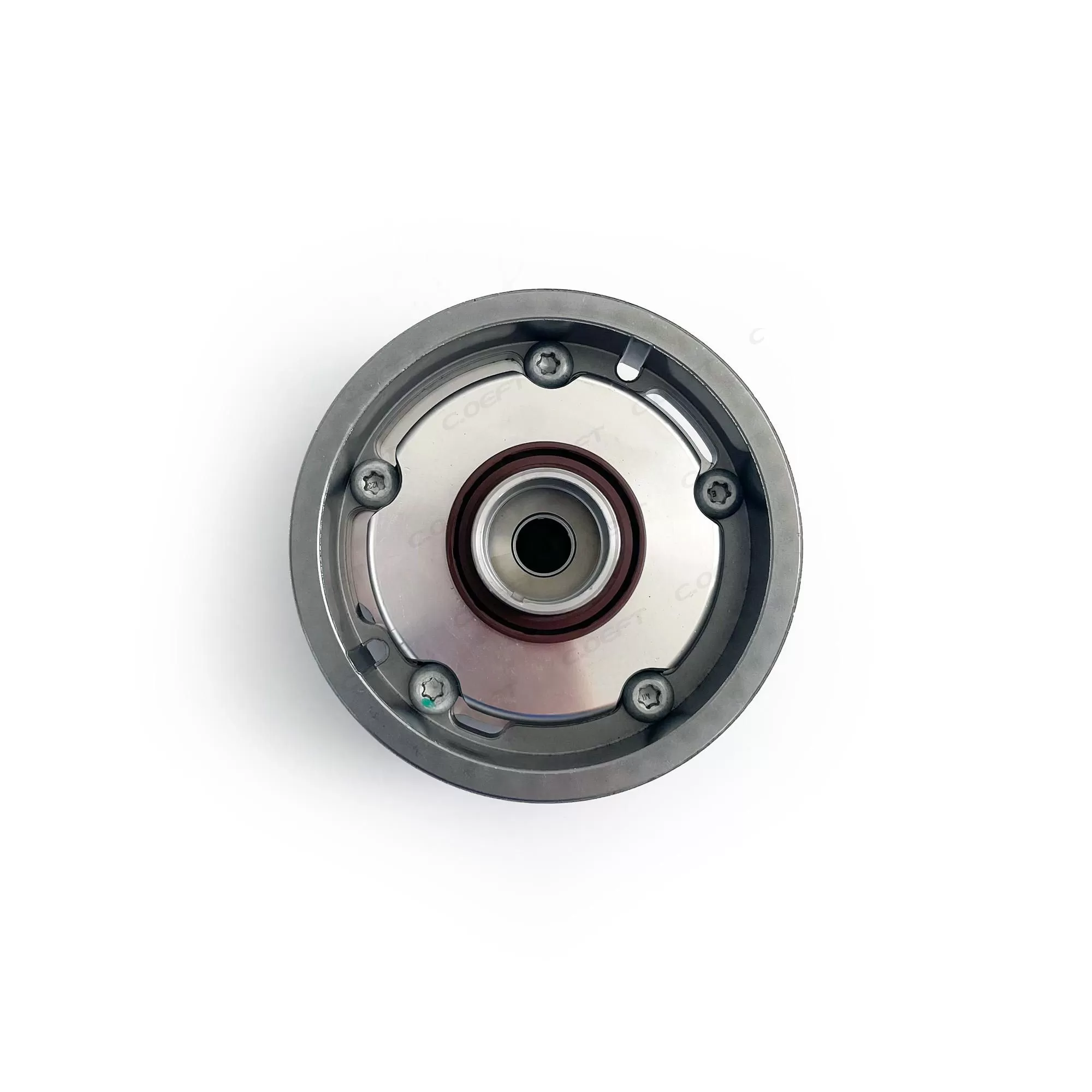

012992410

1.Assisting Thermal Management to Balance Efficiency and Component Protection

Opel ECOTEC engines emphasize thermal efficiency optimization for family-use scenarios. This adjuster helps improve the engine’s thermal balance through exhaust timing regulation:

·Short-distance commuting (frequent cold starts): Adjusts the exhaust valve opening rhythm to reduce exhaust heat loss, helping the engine quickly reach the normal operating temperature (shortening the time for water temperature to rise to 80°C by 15%). This reduces mechanical wear and fuel consumption during the cold engine phase.

·High-speed cruising (high-load heat dissipation demand): Delays exhaust valve closing to disperse the peak of exhaust gas flow, avoiding local overheating of the exhaust manifold. Cooperating with the engine cooling system, it maintains a stable operating temperature, protecting the service life of the turbocharger (for 1.4T models) and exhaust components.

2. Synergy with Exhaust Aftertreatment to Reduce Pollutant Emissions

To meet the requirements of strict emission standards such as Euro 6d-TEMP and China 6b for Opel models, this exhaust adjuster achieves in-depth synergy with the aftertreatment system through timing control:

·Cold start phase: Shortens the exhaust valve opening time to increase exhaust gas flow velocity, rapidly heating the three-way catalytic converter (raising the converter temperature from room temperature to the operating temperature above 300°C within 30 seconds). This reduces the emissions of unburned hydrocarbons (HC) and carbon monoxide (CO) during the initial cold start stage.

·Normal operating phase: Dynamically adjusts exhaust valve timing according to exhaust temperature, ensuring the exhaust temperature remains stable within the optimal catalytic reaction range of 350-450°C. This improves the conversion efficiency of nitrogen oxides (NOₓ), reducing the concentration of pollutant emissions by more than 22% compared to traditional exhaust timing systems.
